Dongan 85-1055SH Single-phase General Purpose Transformer, 5kVA

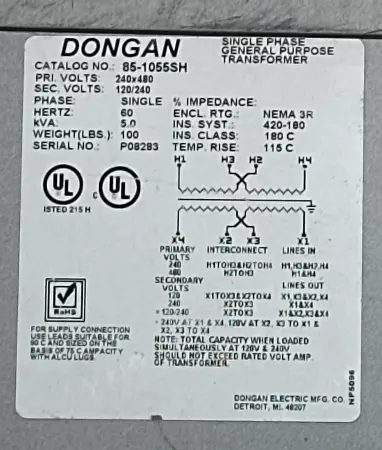

The Dongan 85-1055SH is a dry-type, single-phase general purpose transformer suitable for light industrial or commercial applications requiring reliable voltage conversion and isolation. Catalog Number: 85-1055SH Type: Single-Phase General Purpose Transformer Primary Voltage: 240/480 V Secondary Voltage: 120/240 V Frequency: 60 Hz Power Rating: 5.0 kVA Enclosure: NEMA 3R (outdoor rated) Insulation Class: 180°C Temperature Rise: 115°C Impedance: Not specified on label (contact Dongan for precise %Z) Wiring: Dual primary and secondary windings (series/parallel connection supported) Weight: 100 lbs Mounting: Floor or wall (based on enclosure) Certifications: UL Listed, RoHS Compliant Origin: Dongan Electric Mfg. Co., Detroit, MI 48207, USA Wiring Note: Supports simultaneous use of 120V & 240V outputs; total capacity must not exceed 5 kVA Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   100.00

Depth:   20.00

Length:   20.00

Width:   30.00

SKU:   261186 4.R3.6.3
