In stock 2 available

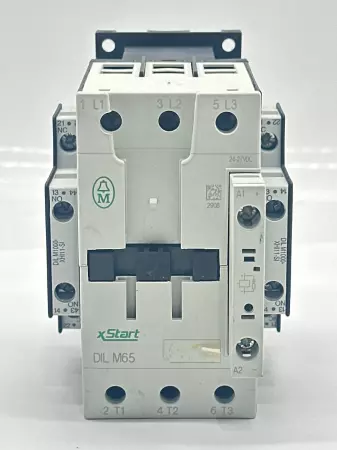

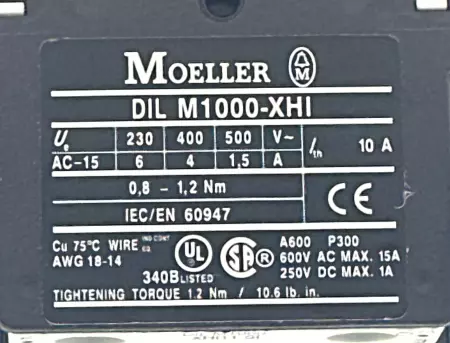

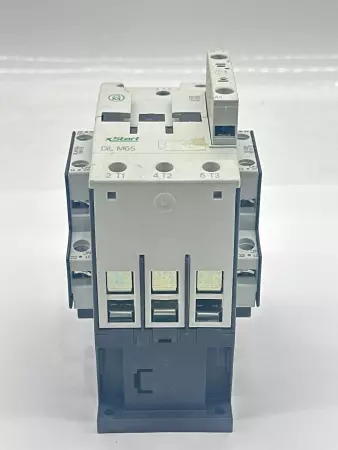

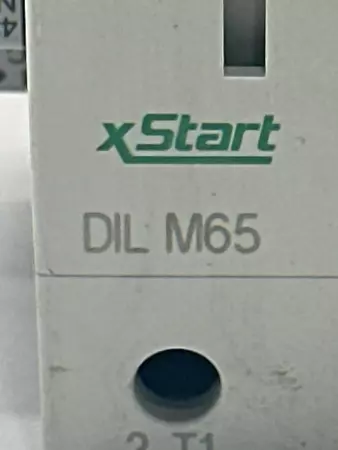

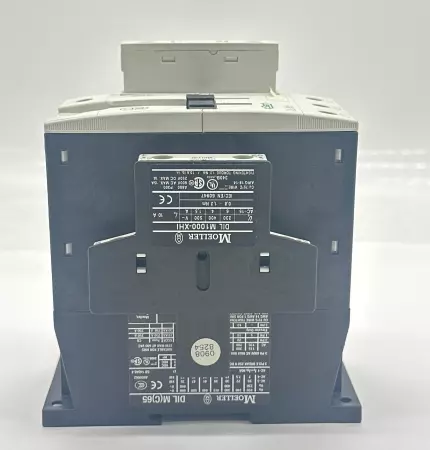

The Moeller DIL M65 is a 3-pole industrial contactor used for controlling electric motors and other high-current loads. It is part of the DIL series designed for reliable operation in IEC and NEMA motor control systems. Model: DIL M65 Manufacturer: Moeller (now Eaton) Rated Operational Current (AC-3): 65 A @ 400 V Rated Power: 30 kW (400 V, AC-3, 3-phase motors) 40 HP (480 V, 3-phase, NEMA) Coil Voltage: AC or DC (varies by exact suffix, e.g. DIL M65(24VDC), DIL M65(230VAC)) Auxiliary Contacts: Typically 1 NO + 1 NC built-in (expandable) Contact Configuration: 3 main NO contacts Standard: IEC 60947, EN 60947 Mounting: DIN rail or panel mount Enclosure: Open type Mechanical Durability: >10 million operations Electrical Durability: Up to 1 million operations (AC-3 load) Operating Temperature: –25 °C to +60 °C Applications: Motor starters, heating loads, lighting, capacitor switching The DIL M1000-XHI is an auxiliary contact block designed to mount on Moeller (Eaton) DIL M series contactors. It provides additional signaling or interlocking contacts for control circuits. Model: DIL M1000-XHI Function: Auxiliary contact block Mounting: Snap-on front mount for DIL M contactors (typically M65 and above) Contact Configuration: 1 Normally Open (NO) + 1 Normally Closed (NC) Rated Operational Current: 10 A at 400 V AC 6 A at 230 V AC 0.5 A at 220 V DC Standards Compliance: IEC 60947, EN 60947, UL, CSA Connection Type: Screw terminals Mechanical Life: >10 million operations Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 5.00
Depth: 8.00
Length: 8.00
Width: 8.00
SKU: 261188 4.S3.12.3
