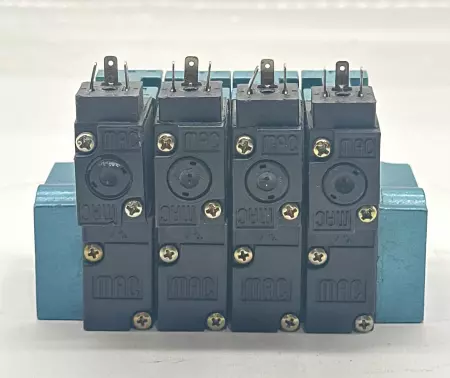

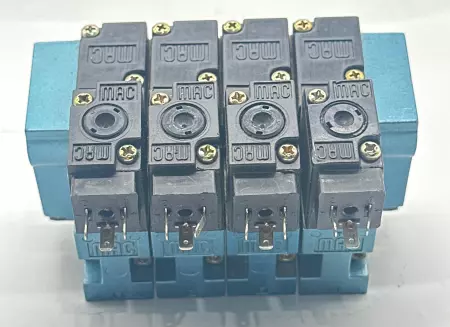

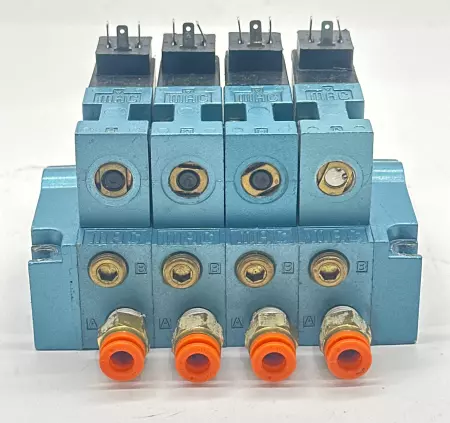

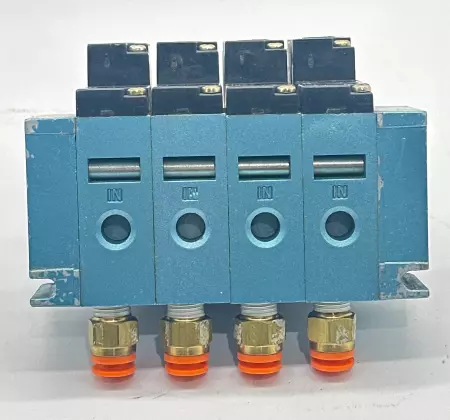

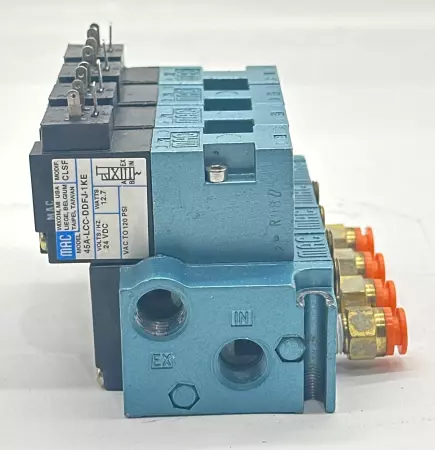

MAC 45A-LCC-DDFJ-1KE Solenoid 4-Valve Assembly

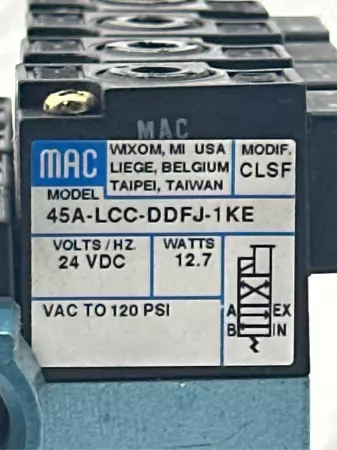

This MAC 45 Series assembly is a compact solenoid valve bank designed for precise control of pneumatic actuators. Known for high speed and repeatability, it is widely used in automation, robotics, and packaging systems. Model: 45A-LCC-DDFJ-1KE Series: 45A (MAC Valve Series 45) Configuration: 4-valve manifold assembly Coil Voltage: 24 VDC Power Consumption: 12.7 W per coil Operating Pressure: Vacuum to 120 PSI (0–8.3 bar) Valve Function: 4-way, 2-position solenoid-actuated with spring return Base Type: Manifold-mounted with common air supply and exhaust Ports: IN (supply) EX (exhaust) Individual output fittings (likely 1/8" NPT, push-to-connect) Mounting Orientation: Any Actuation Type: Solenoid-piloted Body Material: Anodized aluminum Electrical Connection: Plug-in style with multi-pin connector Origin: MAC Valves, Wixom, MI USA (global facilities listed: Belgium, Taiwan) Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   3.00

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   261195 4.S3.13.3
