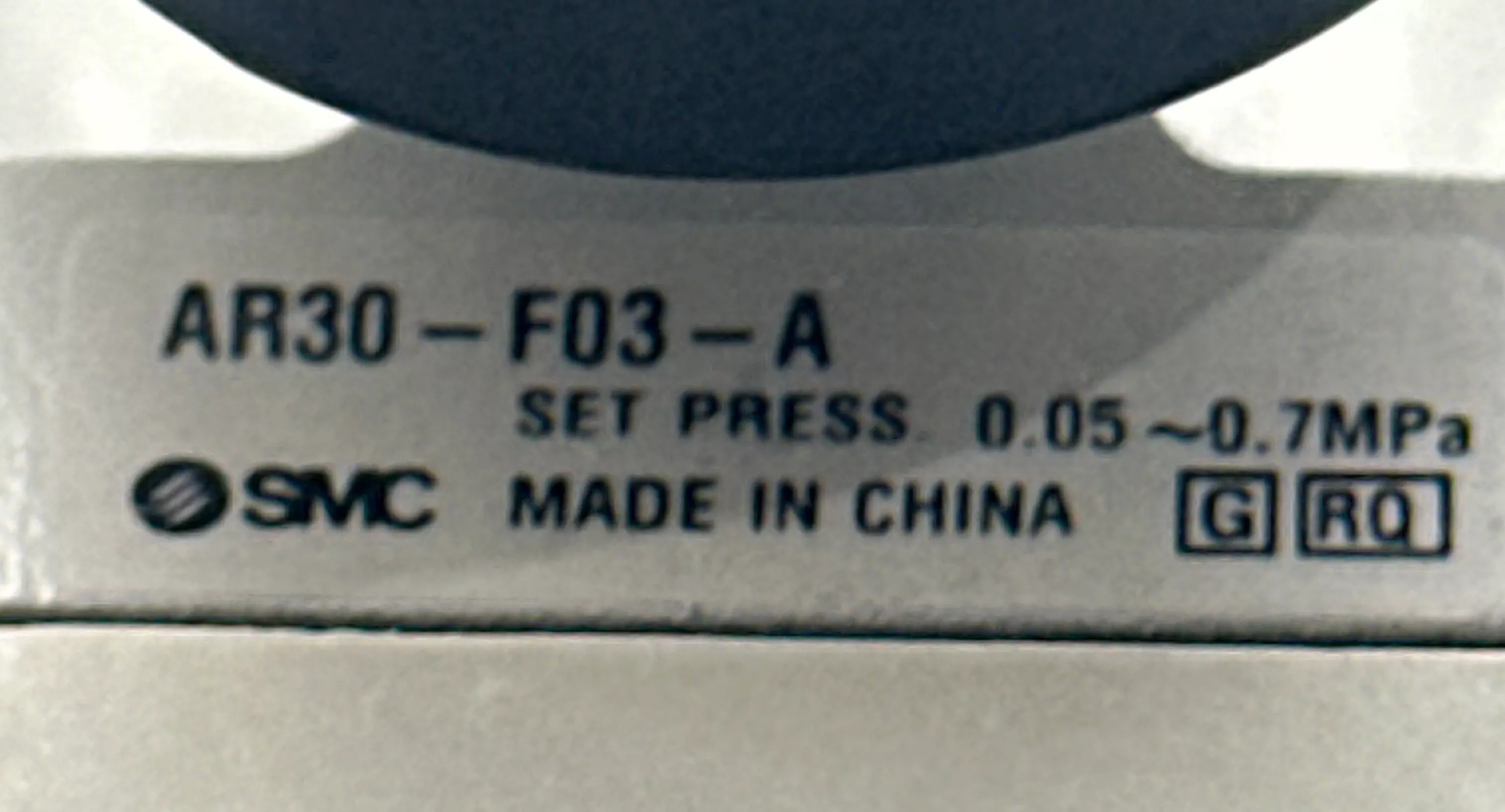

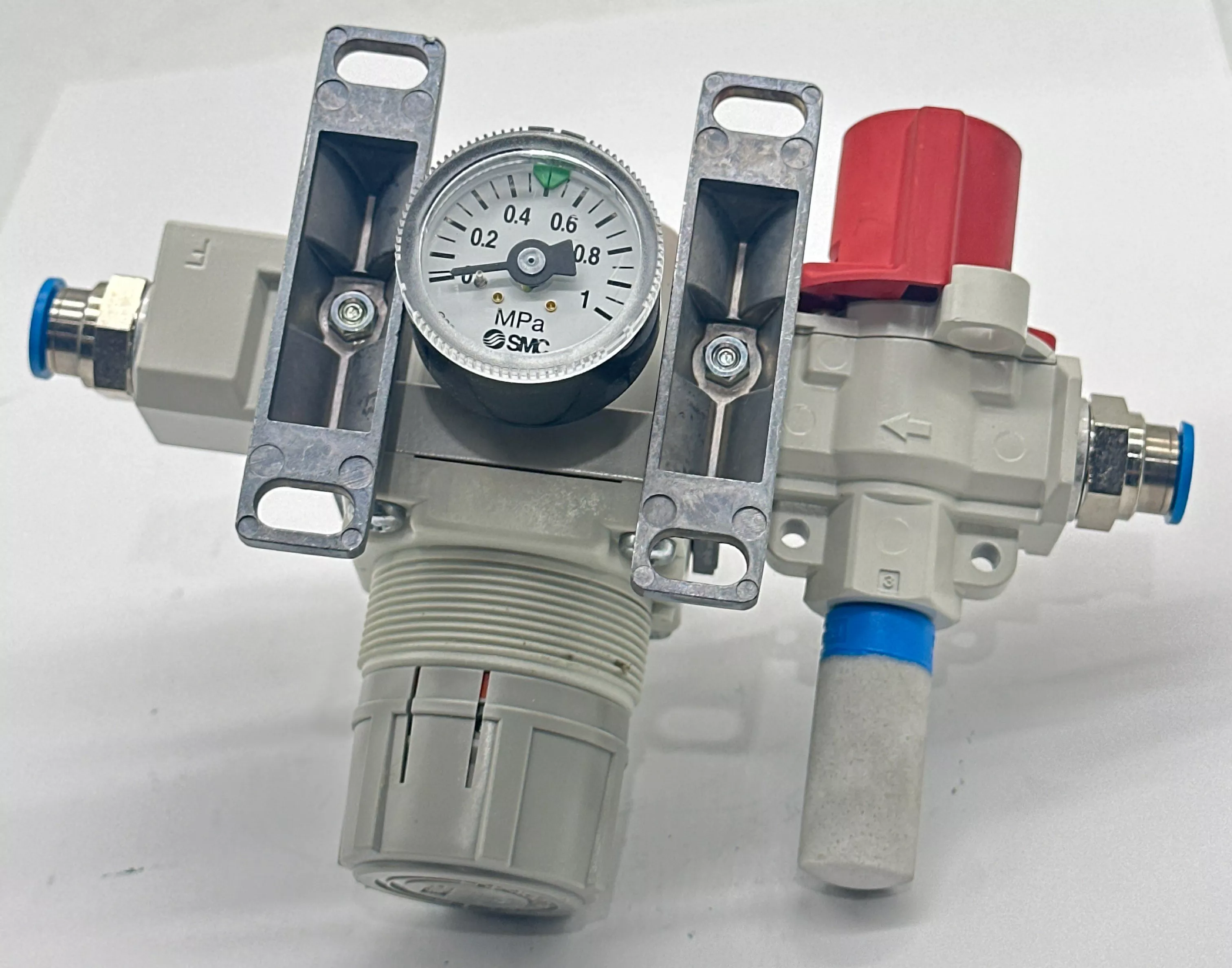

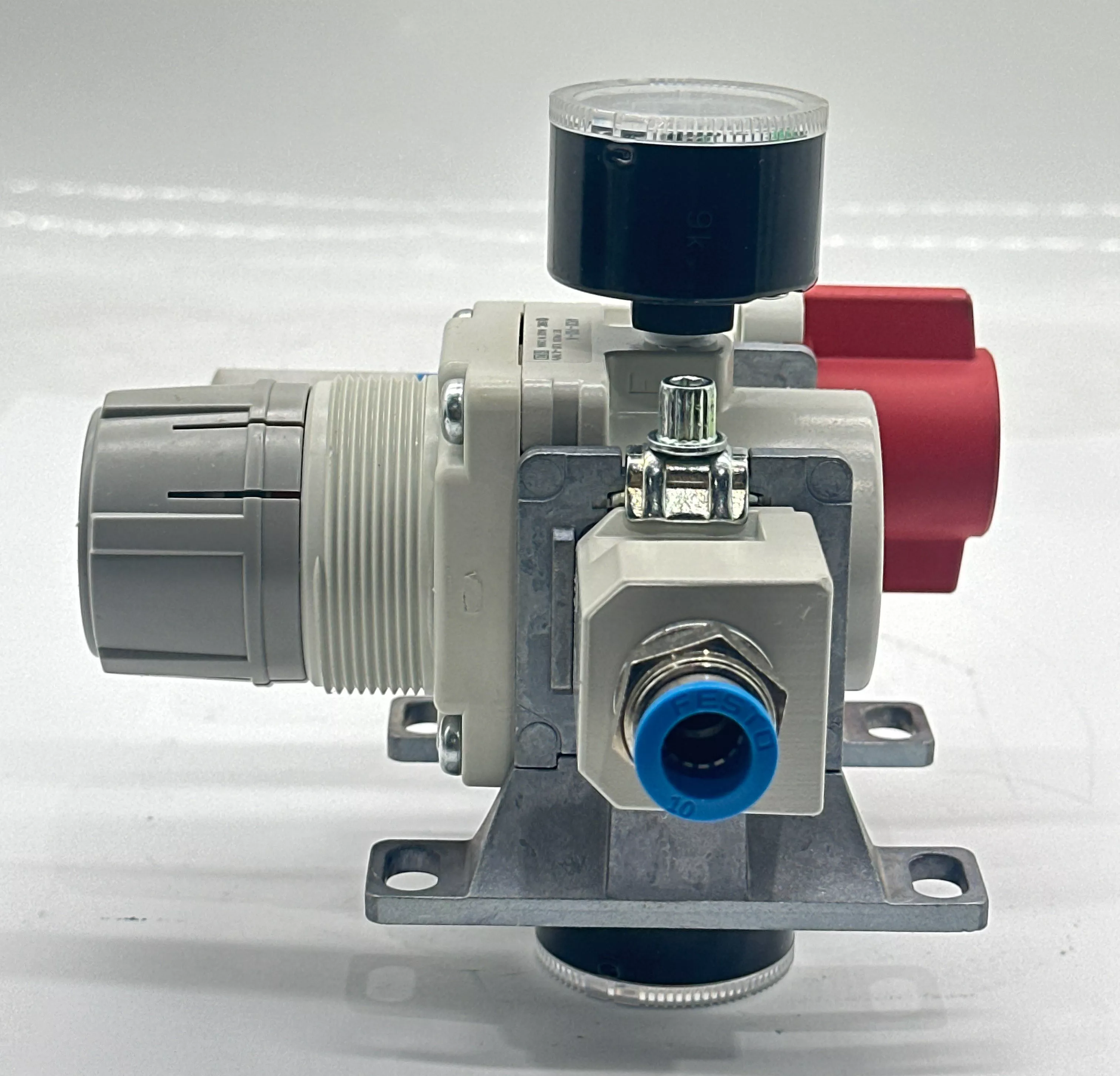

SMC AR30-F03-A Pneumatic Pressure Assembly

The AR30-F03-A is a compact, modular air pressure regulator from SMC, designed for general pneumatic systems. It is part of the AR30 series (Size 30), offering precise pressure control with a relieving function and left-to-right flow orientation. Model: AR30-F03-A Series: AR30 (Size 30) Port Thread Type: G (BSPP) Port Size: 3/8 inch Pressure Setting Range: 0.05 to 0.7 MPa (7 to 100 psi) Backflow Function: No (non-backflow type) Type: Relieving (automatically vents excess downstream pressure) Flow Direction: Left to right Body Material: Aluminum alloy Handle Type: Lockable adjustment knob Mounting: Bracket mountable Ambient/Fluid Temperature: 5 to 60°C Gauge Option: Included 0-1 MPa Application: General industrial air regulation in pneumatic circuits Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   3.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   261197 4.S5.5.3
