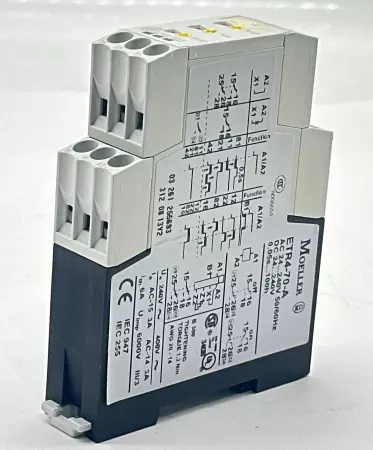

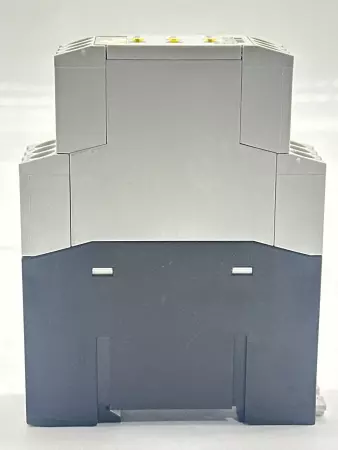

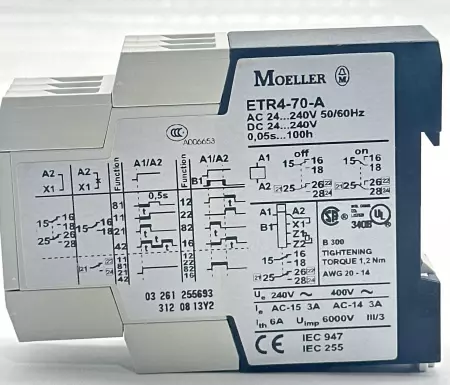

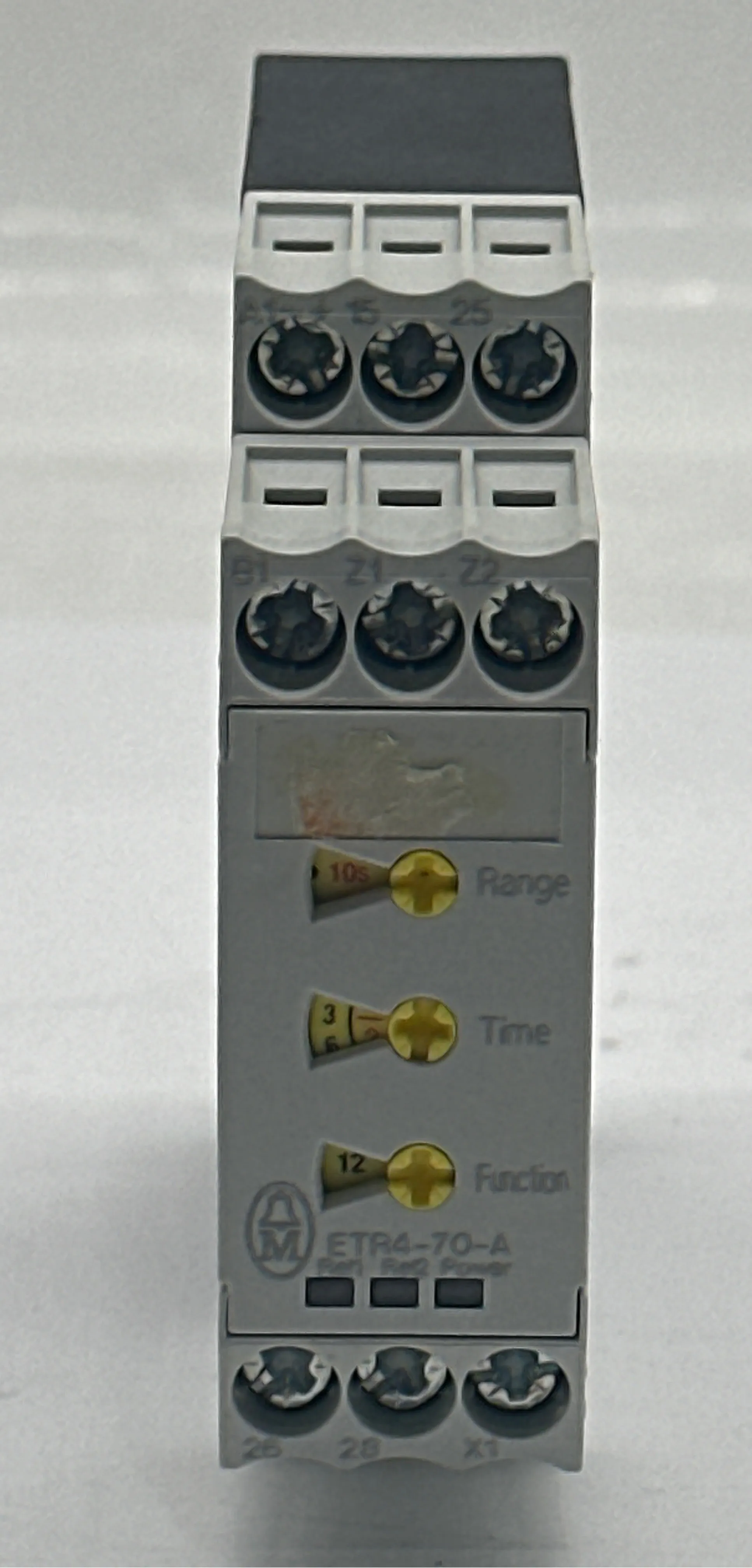

Moeller ETR4-70-A Timing Relay

The ETR4-70-A is a multifunction electronic timing relay from Moeller (now Eaton), designed for automation systems requiring precise timing functions. It offers a wide timing range and supports both AC and DC control voltages. Model: ETR4-70-A Supply Voltage: AC: 24–240 V, 50/60 Hz DC: 24–240 V Timing Range: 0.05 s to 100 hours (adjustable) Functions: Multiple timing functions (delay-on, interval, cyclic, etc.) Contacts: 2 × SPDT (single pole double throw) Contact Ratings: AC-15: 3 A @ 240 V AC-14: 3 A @ 400 V Ith: 6 A (thermal continuous current) Rated Impulse Withstand Voltage (Uimp): 6000 V IP20 Mounting: DIN rail (35 mm) Torque: Terminal tightening torque 1.2 Nm Wiring: AWG 20–14 Certifications: CE, UL, CSA, CCC Standards: IEC 947, IEC 255 Dimensions: Compact modular DIN enclosure

Condition: Used

Weight:   2.00

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   261198 4.S3.12.2A
