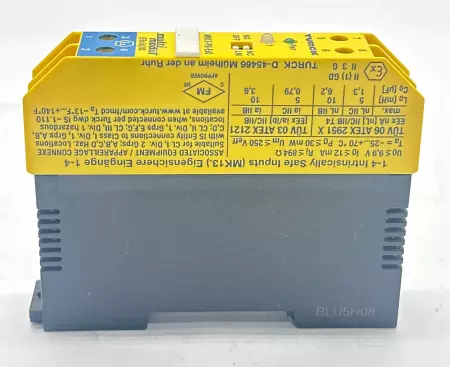

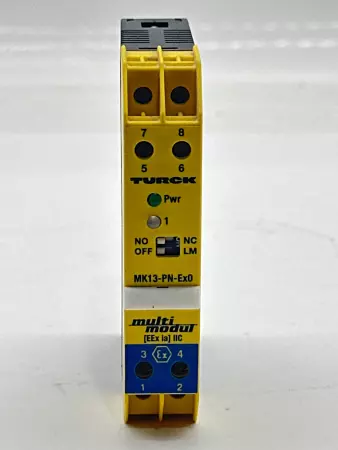

Turck MK13-PN-EX0/24VDC Multi-Modul Switching Amplifier

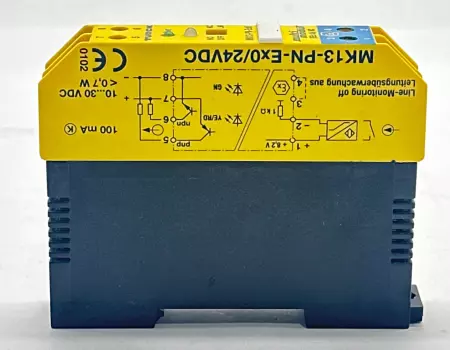

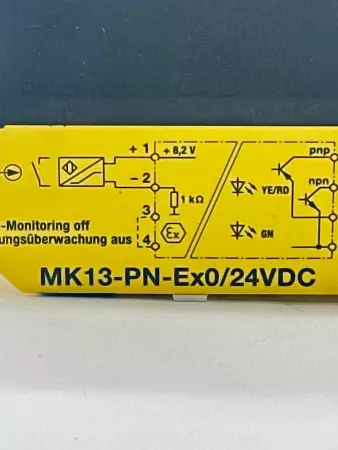

The MK13-PN-Ex0/24VDC is an intrinsically safe signal isolator and switching amplifier from Turck, used for interfacing NAMUR sensors or mechanical contacts from hazardous (Ex) areas to control systems in safe zones. It features line fault detection and supports both PNP and NPN transistor outputs. Model: MK13-PN-Ex0/24VDC Type: Switching Amplifier / Isolated Barrier Input Type: NAMUR sensor or mechanical contact Power Supply: 10–30 VDC Power Consumption: <0.7 W Input Voltage Supply: 8.2 V (sensor supply) Input Current Threshold: 1 mA (approx.) Line Fault Detection: Selectable (Line-monitoring off shown in image) Output Type: PNP and NPN transistor outputs Max Load Current: 100 mA Output Terminals: Pins 5 (PNP), 6 (NPN), 7 (+), 8 (–) Housing: Compact modular design for DIN rail mounting Certifications: CE, K (Korean safety), ATEX/IECEx for use in Ex zones Protection: Galvanic isolation between input, output, and power supply Typical Use: Intrinsically safe interface for hazardous area sensors Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   3.00

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   261200 4.S6.10.4A
