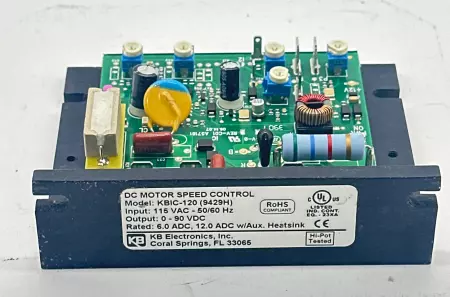

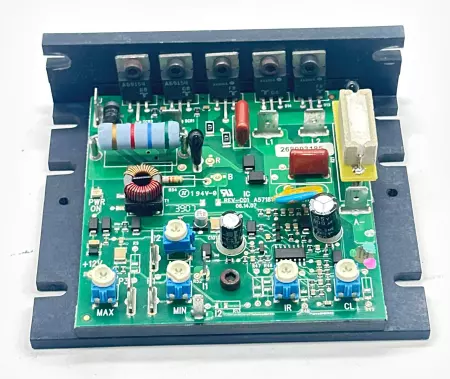

KB Electronics KBIC-120 DC Motor Speed Control Module

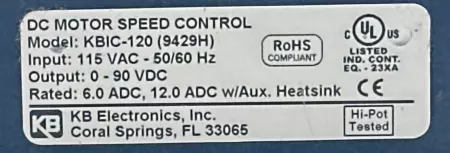

The KBIC-120 (model 9429H) is a compact and reliable DC motor speed control module designed by KB Electronics for use in variable speed applications. It provides adjustable output voltage for permanent magnet or shunt-wound DC motors, offering smooth acceleration and dynamic response. Technical Specifications Model: KBIC-120 (9429H) Input Voltage: 115 VAC Input Frequency: 50/60 Hz Output Voltage: 0–90 VDC Rated Current: 6.0 ADC Max Current with Heatsink: 12.0 ADC Certifications: UL Listed (IND. CONT. EQ. – 23XA), CE Marked, RoHS Compliant Tested: Hi-Pot Tested Manufacturer: KB Electronics, Inc., Coral Springs, FL 33065 Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   3.00

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   261201 4.S1.12.4A
