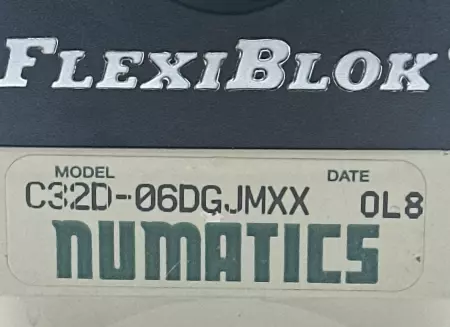

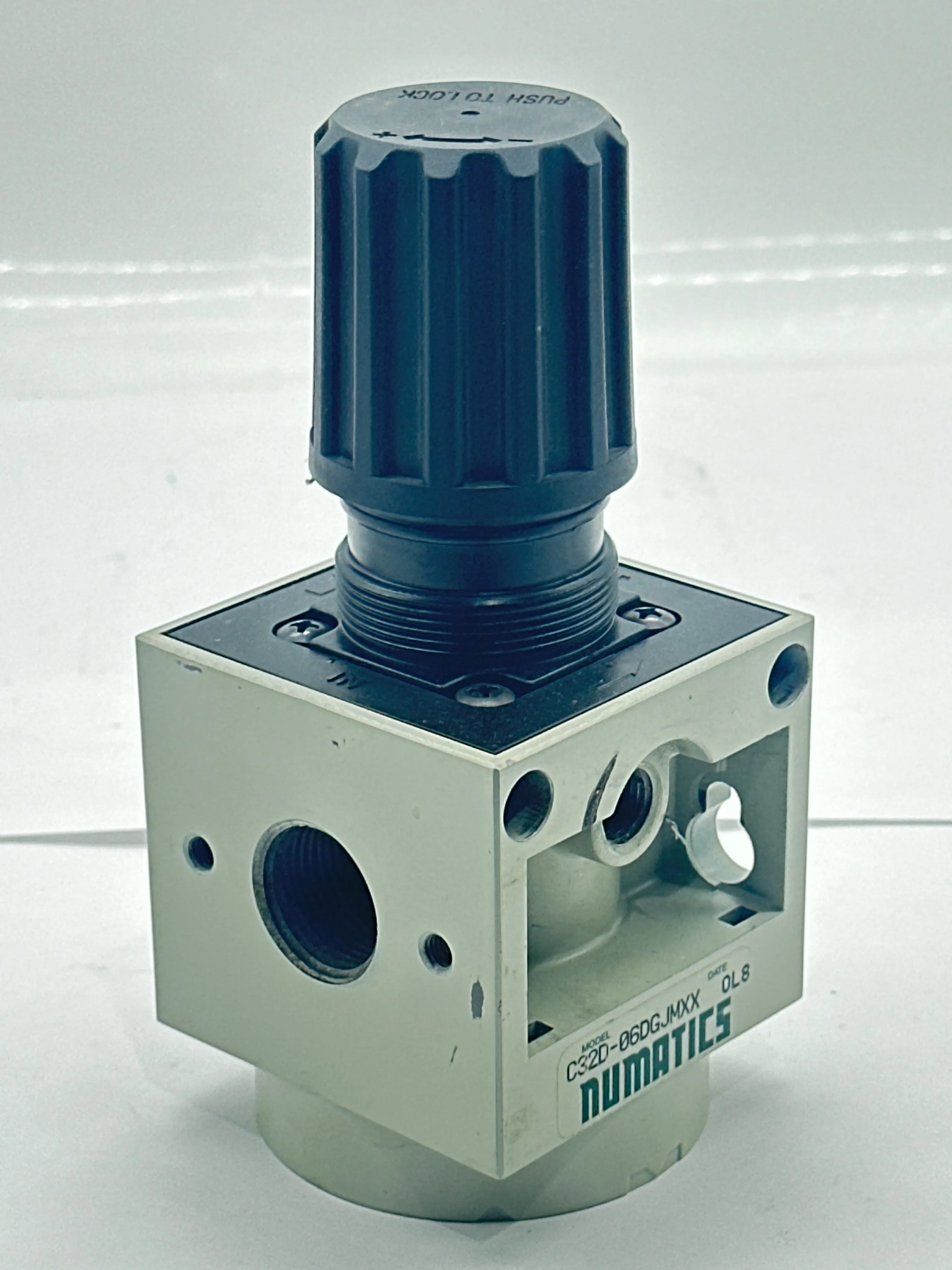

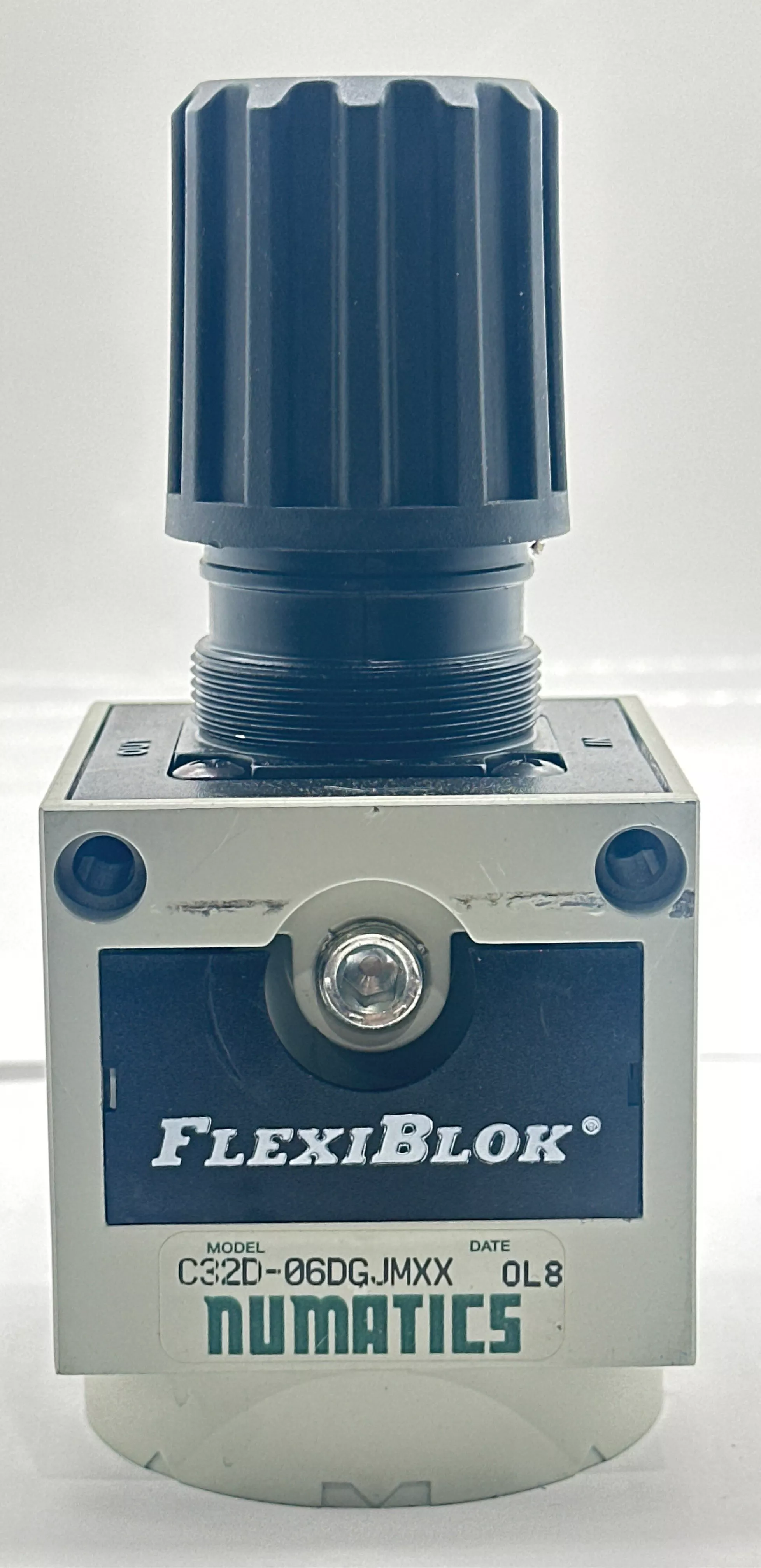

Numatics C32D-06DGJMXX FlexiBlok® Coalescing Filter/Regulator

The Numatics C32D-06DGJMXX is a modular FlexiBlok® coalescing filter/regulator unit designed for high-efficiency air filtration and precise pressure regulation in pneumatic systems. It is part of the C3 Series and integrates filtration and regulation in a compact assembly. Product Specifications Model: C32D-06DGJMXX Series: C3 FlexiBlok® Function: Coalescing Filter/Regulator Combo Unit Port Size: 3/4" NPT (Port Code 06) Filtration Type: Coalescing (removes oil aerosols, submicron particles) Filter Rating: Typically 0.3 μm Bowl Type: Metal bowl with sight gauge (polycarbonate optional) Drain Type: Manual or automatic (varies by suffix option) Pressure Regulation Range: ~5 to 125 PSI adjustable (exact range dependent on spring rating) Max Inlet Pressure: Typically 250 PSI Operating Temperature: ~40°F to 150°F (5°C to 65°C), depending on bowl material Mounting: Modular; compatible with other FlexiBlok components Construction: Aluminum body with corrosion-resistant coating Compliance: ISO 8573-1 standards (depending on element grade) Application: Protects pneumatic actuators, valves, and instruments by removing fine contaminants and regulating pressure in compressed air systems Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   5.00

Depth:   6.00

Length:   6.00

Width:   10.00

SKU:   261213 4.S3.13.3
