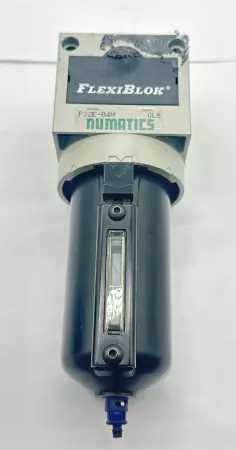

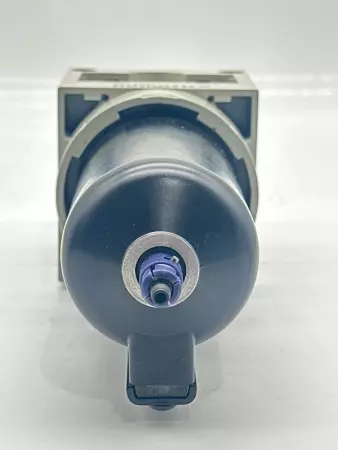

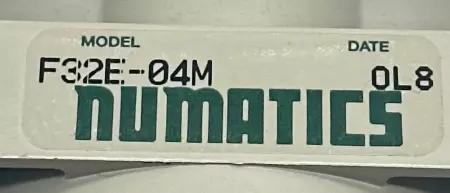

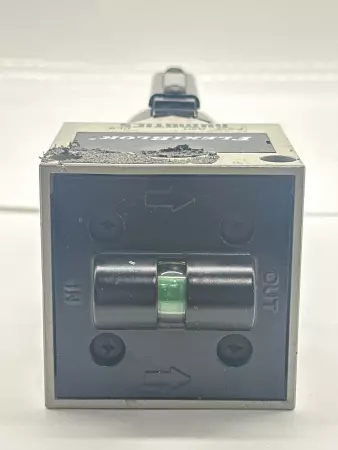

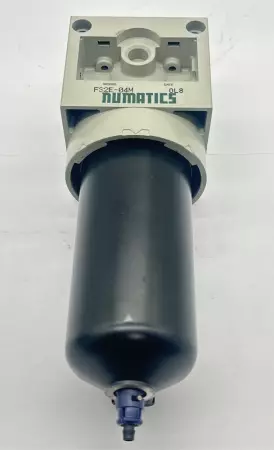

Numatics F32E-04M FlexiBlok® Coalescing Filter

The Numatics F32E-04M is a high-efficiency coalescing filter from the FlexiBlok® modular air preparation series. It is designed to remove oil aerosols, fine particulates, and moisture from compressed air systems, protecting downstream pneumatic components in industrial applications. Technical Specifications Model: F32E-04M Series: FlexiBlok® Function: Coalescing Filter (Oil Removal) Port Size: 1/2" NPT Bowl Capacity: 3.8 Oz Filtration Rating: 0.01 micron Maximum Operating Pressure: 150 PSIG (10.3 bar) Bowl Material: Polycarbonate with metal bowl guard Drain Type: Manual or automatic (varies by version) Flow Capacity: Approx. 70 SCFM @ 100 PSIG (varies by system conditions) Mounting: Modular (with optional brackets or joined to other FlexiBlok units) Temperature Range: 40°F to 125°F (4°C to 52°C) Application: Compressed air filtration in automation and pneumatic systems Manufacturer: Numatics, a division of Emerson Automation Solutions Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   5.00

Depth:   6.00

Length:   6.00

Width:   10.00

SKU:   261214 4.S3.13.3
