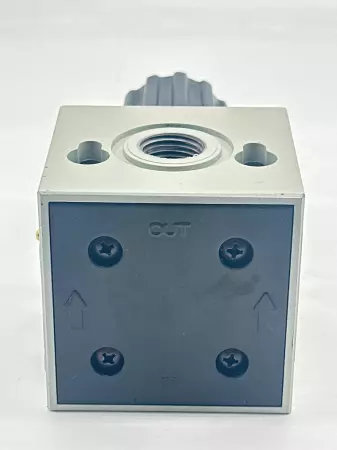

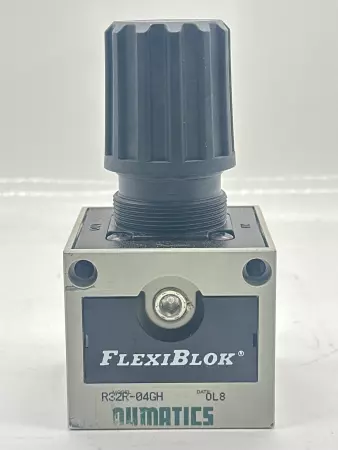

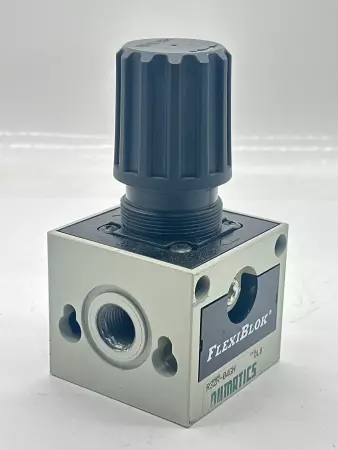

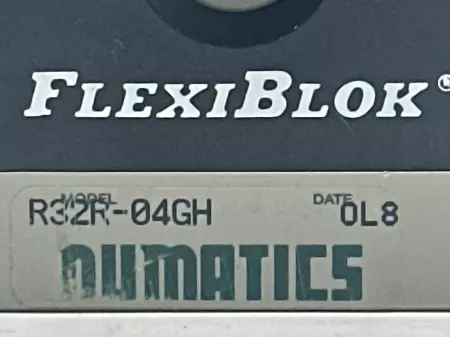

Numatics R32R-04GH FlexiBlok® Pneumatic Regulator

The Numatics R32R-04GH is a modular pneumatic pressure regulator from the FlexiBlok® series. It is designed to maintain a consistent downstream air pressure regardless of fluctuations in supply pressure or airflow demand, and integrates easily into modular FRL systems. Technical Specifications Model: R32R-04GH Series: FlexiBlok® Function: Pressure Regulator Port Size: 1/2" NPT Adjustment Type: Non-relieving with pressure gauge Regulation Range: 5 to 125 PSIG (0.3 to 8.6 bar) Maximum Supply Pressure: 250 PSIG (17.2 bar) Gauge Port: Integrated pressure gauge (typically 1.5" face) Mounting: Modular (can be joined with FlexiBlok filters/lubricators) Flow Capacity: Approx. 150 SCFM @ 100 PSIG (varies with downstream setting) Body Material: Die-cast aluminum Temperature Range: 40°F to 120°F (4°C to 49°C) Application: Industrial pneumatic systems, automation equipment Manufacturer: Numatics, a division of Emerson Automation Solutions Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   5.00

Depth:   6.00

Length:   6.00

Width:   10.00

SKU:   261215 4.S3.13.3
