In stock 3 available

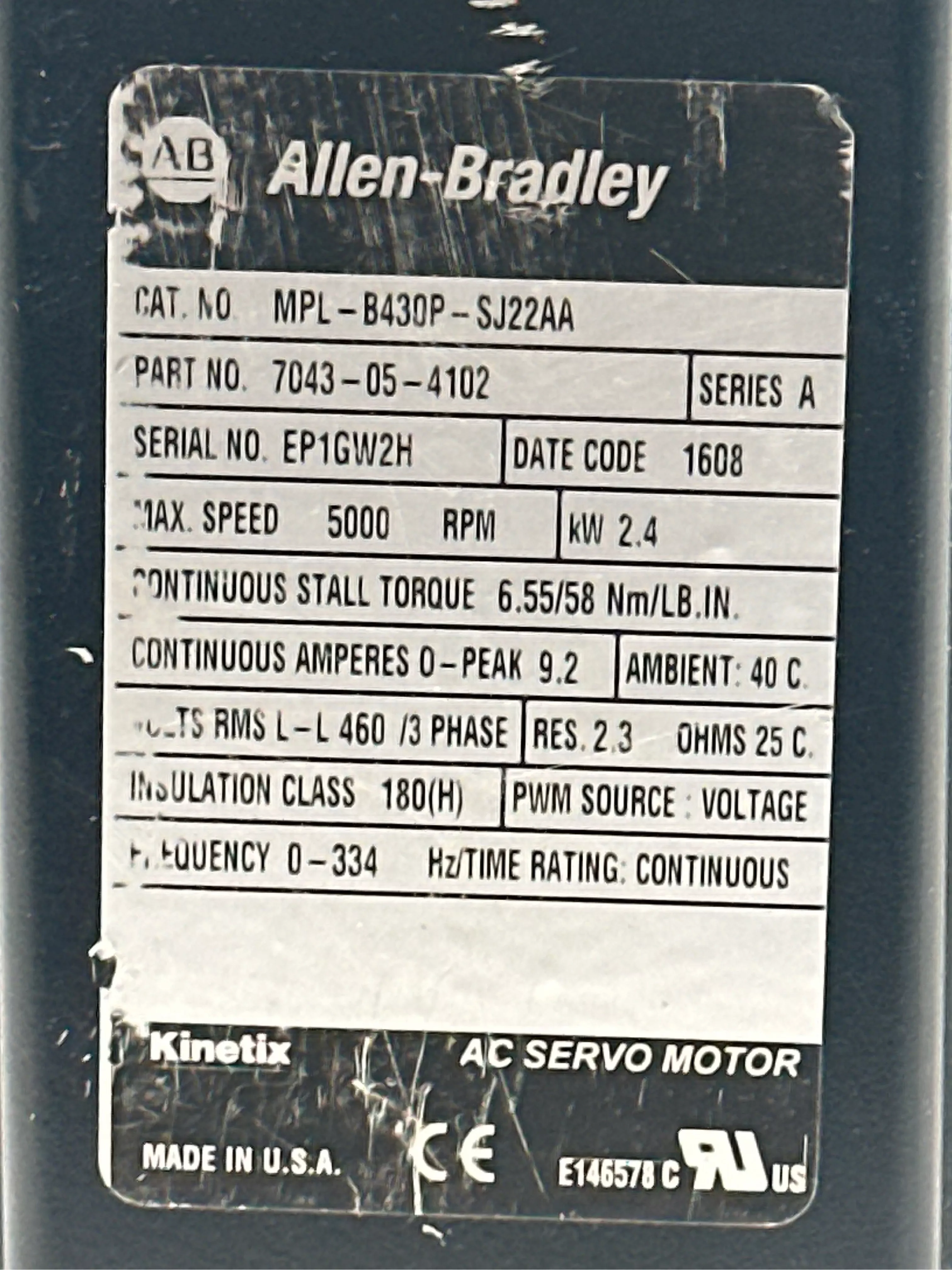

The MPL-B430P-SJ22AA is a high-performance AC servo motor from Allen-Bradley's Kinetix series, designed for precise motion control in industrial automation applications. This model offers high torque density and is compatible with Rockwell Kinetix servo drives. Motor Specifications Catalog Number: MPL-B430P-SJ22AA Series: A Part Number: 7043-05-4102 Power Rating: 2.4 kW Voltage: 460 V RMS (Line-to-Line), 3-phase Max Speed: 5000 RPM Continuous Stall Torque: 6.55 Nm / 58 lb-in Peak Current: 9.2 A Resistance: 2.3 Ohms (L-L @ 25°C) Frequency Range: 0–334 Hz Time Rating: Continuous duty Insulation Class: 180 (Class H) Ambient Operating Temp: 40°C PWM Source: Voltage-controlled Enclosure Type: Standard industrial (likely IP50–IP66 depending on configuration) Made In: USA Compliance: CE, UL Recognized, cURus (E146578) Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 8.00
Depth: 5.00
Length: 9.00
Width: 12.00
SKU: 261217 4.S9.16.2
