In stock 2 available

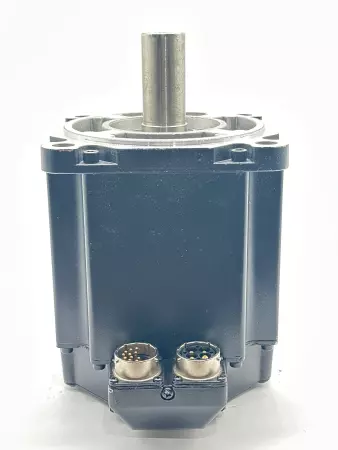

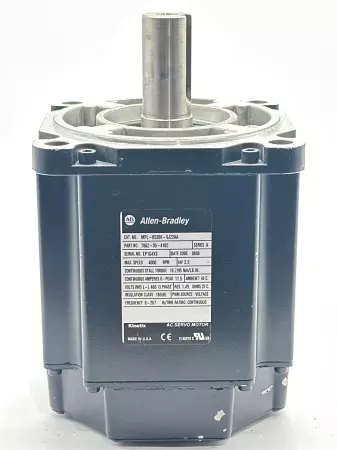

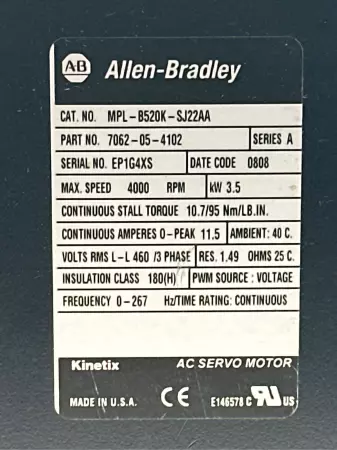

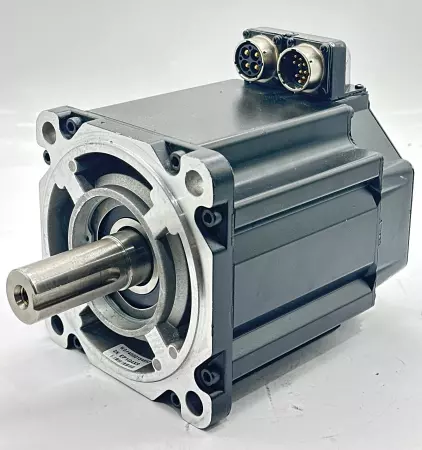

The Allen-Bradley MPL-B520K-SJ22AA is a high-performance Kinetix series AC servo motor designed for precision motion control applications. It delivers high torque and speed in a compact frame, making it ideal for automation and CNC machinery. Technical Specifications Catalog Number: MPL-B520K-SJ22AA Part Number: 7062-05-4102 Series: A Max Speed: 4000 RPM Rated Power: 3.5 kW Continuous Stall Torque: 10.7 Nm (95 lb-in) Continuous Current (0-Peak): 11.5 A Voltage Rating: 460V RMS line-to-line, 3-phase Resistance: 1.49 Ohms @ 25°C Insulation Class: 180(H) PWM Source: Voltage Frequency Range: 0–267 Hz Time Rating: Continuous Ambient Temperature: 40°C Certifications: CE, UR (Recognized Component) Application: Kinetix servo drive systems, industrial automation Country of Origin: Made in U.S.A. Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 15.00
Depth: 10.00
Length: 12.00
Width: 16.00
SKU: 261222 4.S9.16.2
