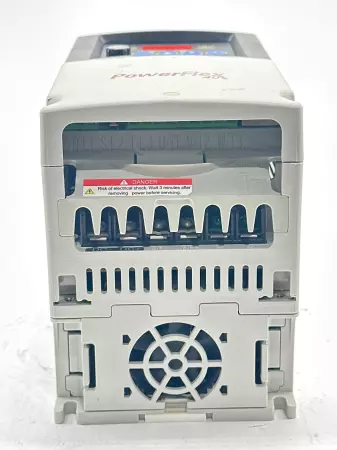

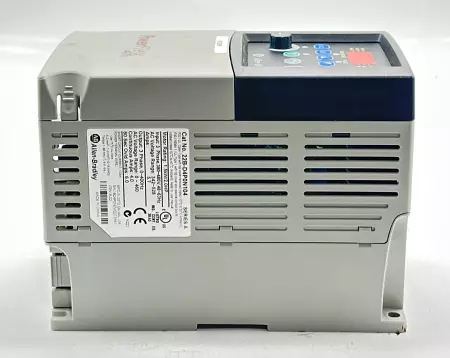

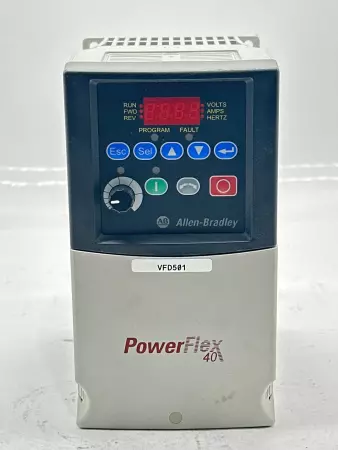

Allen-Bradley 22B-D4P0N104 SER.A PowerFlex 40 AC Drive, 2.0HP

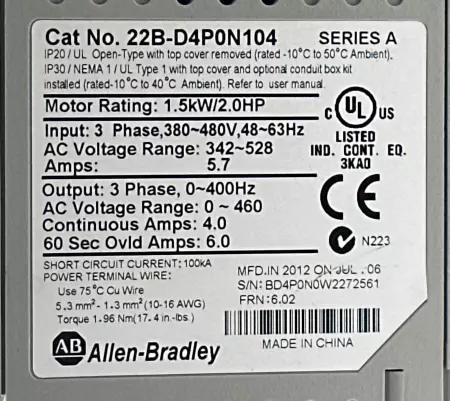

The Allen-Bradley 22B-D4P0N104 is a PowerFlex 40 Series A adjustable frequency AC drive designed for motor control in industrial automation systems. It offers reliable speed control and overload protection for general-purpose applications. Technical Specifications Catalog Number: 22B-D4P0N104 Series: A Drive Type: PowerFlex 40 AC Variable Frequency Drive (VFD) Motor Rating: 1.5 kW / 2.0 HP Input: 3 Phase, 380–480V AC, 48–63 Hz Input Voltage Range: 342–528 VAC Input Current: 5.7 A Output: 3 Phase, 0–400 Hz Output Voltage Range: 0–460 VAC Continuous Output Current: 4.0 A Overload (60 sec): 6.0 A Short Circuit Rating: 100 kA Frequency Range: 0–400 Hz Wire Size Range: 5.3 mm²–1.3 mm² (10–16 AWG) Torque Spec: 1.96 Nm (17.4 in-lbs) Enclosure Rating: IP20 (open type) / IP30 (with cover and conduit box) Ambient Temp Rating: -10°C to 50°C (IP20) or 40°C (IP30) Certifications: UL, cUL, CE, N223 Firmware Revision: FRN 6.02 Country of Manufacture: China Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   8.00

Depth:   5.00

Length:   9.00

Width:   12.00

SKU:   261224 4.S9.16.3
