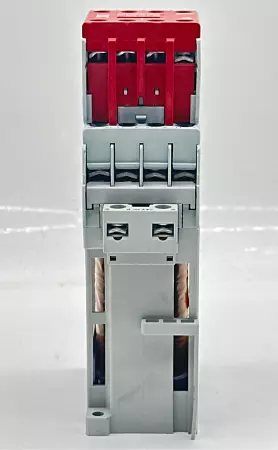

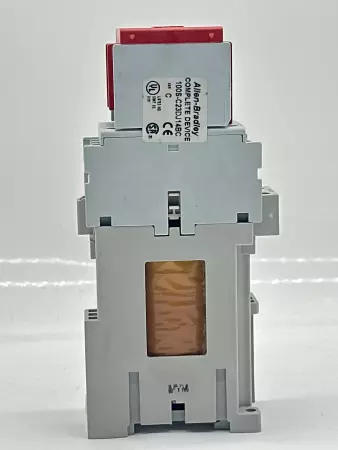

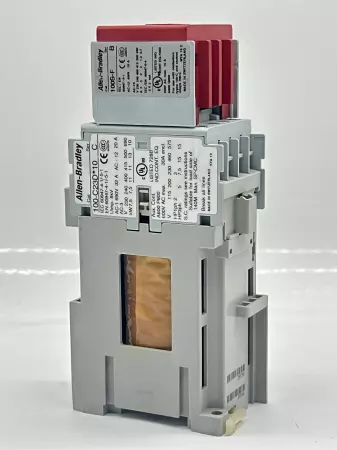

Allen-Bradley 100S-C23DJ14BC SER.C Safety Contactor, 690V 32 amp

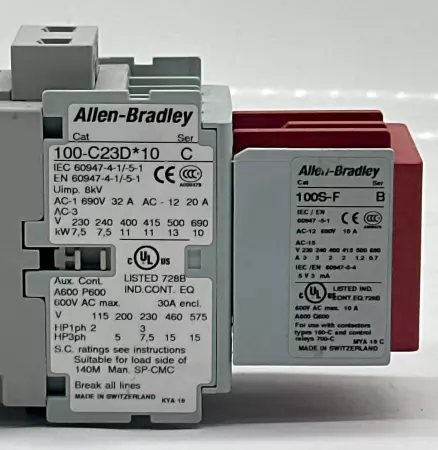

The Allen-Bradley 100S-C23DJ14BC is a safety-rated 3-pole contactor used in functional safety circuits. It integrates a standard 100-C23D contactor with a 100S-F feedback module for safe disconnection, typically used in Category 3 or 4 safety applications. Contactor Model: 100-C23D*10 Safety Module: 100S-F Rated Operational Voltage (Ue): 690 V AC Rated Impulse Withstand Voltage (Uimp): 8 kV Rated Current AC-3: 32 A Rated Current AC-12: 20 A Power Rating (AC-3, 3-phase motors): 7.5 kW (230 V), 7.5 kW (240 V), 11 kW (400 V), 11 kW (415 V), 13 kW (500 V), 10 kW (690 V) Coil Voltage: 24 V DC (electronic coil, from “DJ” code) Auxiliary Contacts: A600 / P600 Horsepower Ratings: 1Ph – 2 HP (115 V), 3 HP (200 V), 5 HP (230 V), 7.5 HP (460 V), 15 HP (575 V); 3Ph – 5 HP (200 V), 7.5 HP (230 V), 15 HP (460–575 V) Auxiliary Ratings (AC-15): 10 A @ 230–690 V AC Mirror Contacts: Yes (via 100S-F module) Safety Compliance: IEC/EN 60947-4-1, 60947-5-1, 60947-5-4 Mounting: DIN rail or panel Protection Rating: IP20 (open type) Certifications: UL, cUL, CE, CCC Made in: Switzerland

Condition: Used

Weight:   4.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   261249 4.S7.26.3
