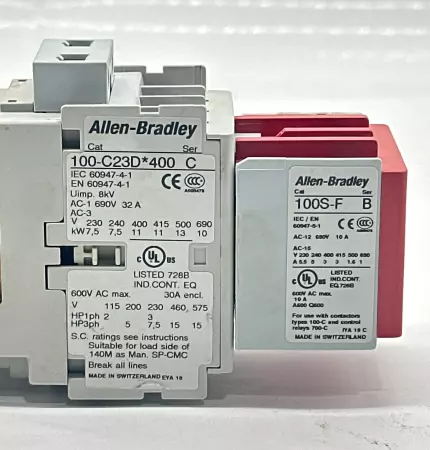

Allen-Bradley 100-C23D*400 SER.C Safety Contactor, 690V 32 amp

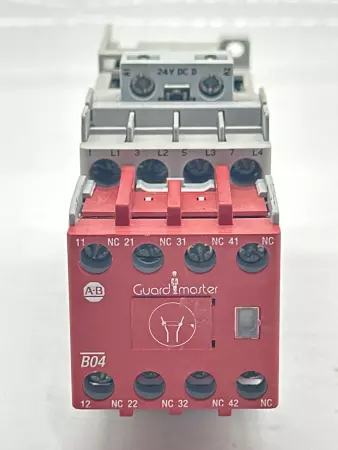

The Allen-Bradley 100-C23D*400 is a 3-pole IEC contactor designed for motor control applications. It supports up to 690V AC and is rated for switching motor loads with high reliability. It is often paired with safety modules like the 100S-F for use in safety circuits. Model: 100-C23D*400 Rated Operational Voltage (Ue): 690 V AC Rated Impulse Withstand Voltage (Uimp): 8 kV Rated Current AC-3: 32 A Power Rating (AC-3, 3-phase motors): 7.5 kW (230–240 V), 11 kW (400–415 V), 13 kW (500 V), 10 kW (690 V) Frequency: 50/60 Hz Coil Voltage: 400 V AC Utilization Category: AC-3 Conformity: IEC 60947-4-1, EN 60947-4-1 UL Ratings: 600V AC max, 30 A enclosure Horsepower Ratings: 1Ph – 2 HP (115 V), 3 HP (200 V), 5 HP (230 V), 7.5 HP (460–575 V); 3Ph – 5 HP (200 V), 7.5 HP (230 V), 15 HP (460–575 V) Mounting: DIN rail or panel Certifications: UL, cUL, CE Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   4.00

Depth:   6.00

Length:   6.00

Width:   10.00

SKU:   261250 4.S7.26.3
