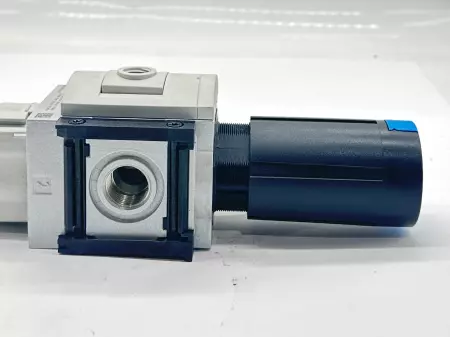

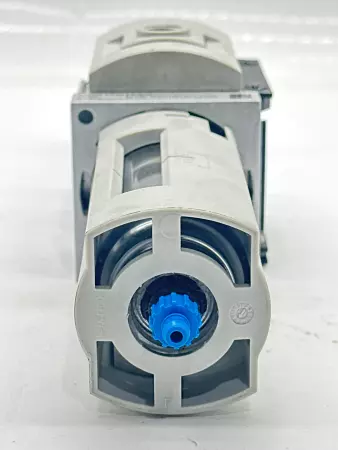

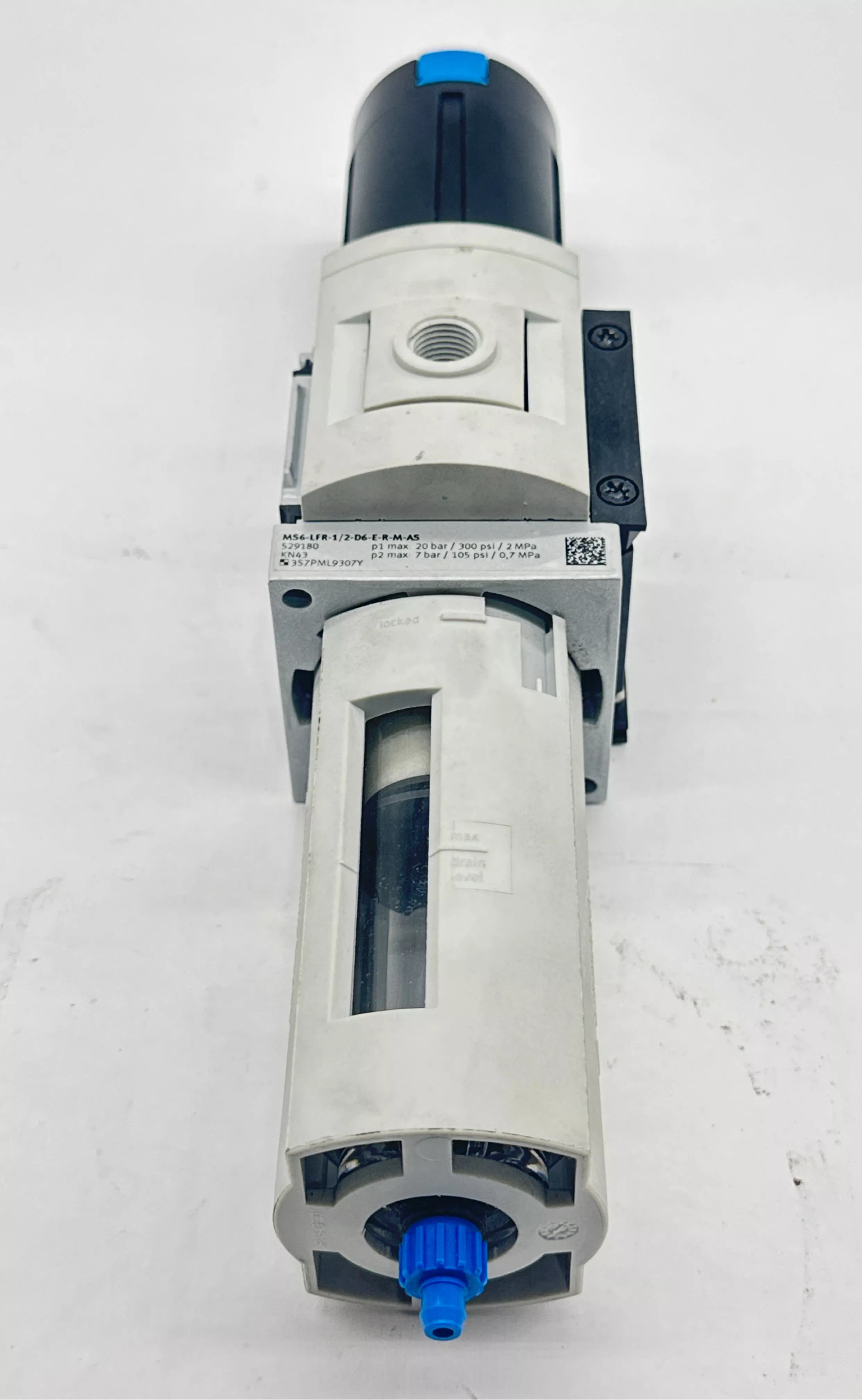

Festo 529180 Pneumatic Filter/Regulator

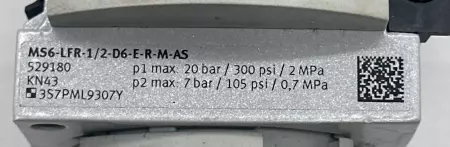

The Festo MS6-LFR-1/2-D6-E-R-M-AS (part number 529180) is a modular filter/regulator unit from the MS series. It combines air filtration and pressure regulation for pneumatic systems, ensuring clean and consistent pressure delivery in industrial automation applications. Model: MS6-LFR-1/2-D6-E-R-M-AS Part Number: 529180 Series: MS6 Port Size: 1/2" Pressure Regulation Type: Relieving Filter Grade: 40 µm Max Inlet Pressure (p1): 20 bar / 300 psi / 2 MPa Max Outlet Pressure (p2): 7 bar / 105 psi / 0.7 MPa Pressure Control Range: Typically 0.5–7 bar (adjustable) Flow Rate: Up to ~7,000 l/min (depending on configuration) Modular Interface: Yes (with MS series accessories) Condensate Drain: Manual or semi-automatic (varies by subvariant) Mounting Type: Panel or wall mount Body Material: Die-cast aluminum Operating Medium: Compressed air, filtered Applications: Industrial automation, pneumatic systems, machine building Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   6.00

Depth:   6.00

Length:   6.00

Width:   10.00

SKU:   261251 4.S6.6.2
