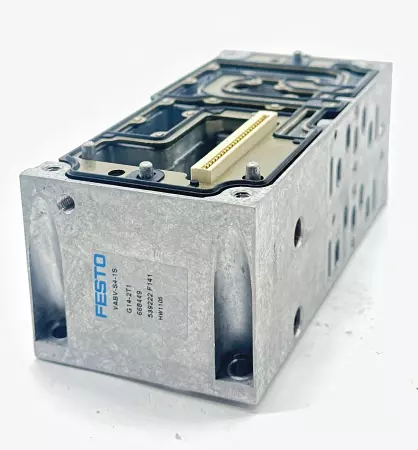

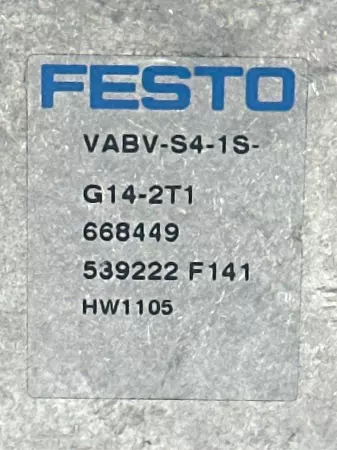

Festo 668449 Manifold Block Sub-Base Type: VABV-S4-1S-G14-2T1

The Festo VABV-S4-1S-G14-2T1 is a sub-base manifold block used for mounting and connecting solenoid valves in a modular pneumatic system. It allows for efficient air distribution and simplified valve installation. Product Description: Sub-base manifold block for solenoid valves Manufacturer: Festo Part Number: 668449 Model/Type: VABV-S4-1S-G14-2T1 Function: Mounting interface for ISO size 1 valves with pneumatic and electrical connections Technical Specifications Valve Interface Type: ISO 15407-1 Size 1 Number of Stations: 1 Port Type: G1/4 Number of Pneumatic Outputs: 2 Mounting Position: Any Operating Pressure: 0 to 10 bar Medium: Compressed air per ISO 8573-1:2010 [7:4:4] Material: Aluminum body with integrated seals Connection Type: Threaded port G1/4" for air inlet and outlets Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   5.00

Depth:   6.00

Length:   6.00

Width:   10.00

SKU:   261278 4.S6.6.2
