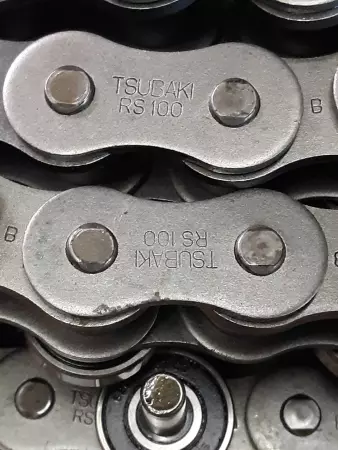

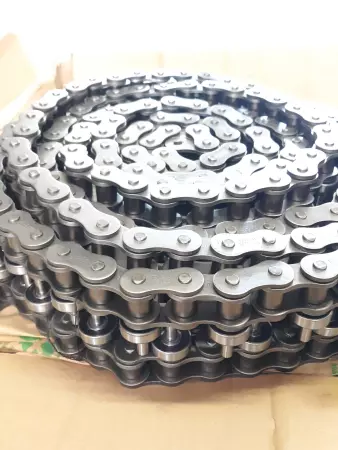

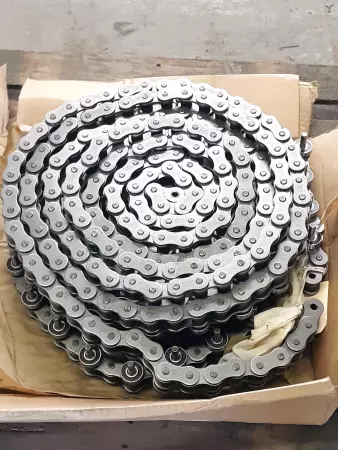

Tsubaki ISS RC100 Roller Chain With Bearings, 40 Feet RS100

The Tsubaki ISS RC100 (RS100) is a heavy-duty industrial roller chain equipped with integrated bearings for enhanced durability and reduced friction. Supplied in a 40-foot length, this chain is ideal for power transmission and conveyor applications requiring high strength, precision, and long service life. Technical Specifications: Model: ISS RC100 / RS100 Chain Type: Roller Chain with Bearings (ISS: Improved Silent Series) Pitch: 1.25 inches (31.75 mm) Roller Diameter: 0.75 inches (19.05 mm) Width Between Inner Plates: 0.750 inches (19.05 mm) Pin Diameter: 0.375 inches (9.53 mm) Plate Height: 1.18 inches (30 mm) Plate Thickness: 0.188 inches (4.78 mm) Average Tensile Strength: ~35,000 lbf (approx. 155.7 kN) Chain Material: Carbon steel with heat-treated components Surface Finish: Anti-corrosion treated or plain steel (depending on variant) Bearing Type: Built-in precision bushings/bearings to reduce wear and noise Length: 40 feet (12.2 meters) Lubrication: Pre-lubricated, suitable for re-lubrication during operation Standards: ANSI RS100 compliant

Condition: New – Open box

Weight:   150.00

Depth:   35.00

Length:   48.00

Width:   48.00

SKU:   26652 4.R6.6.3, 4.R6.7.4
