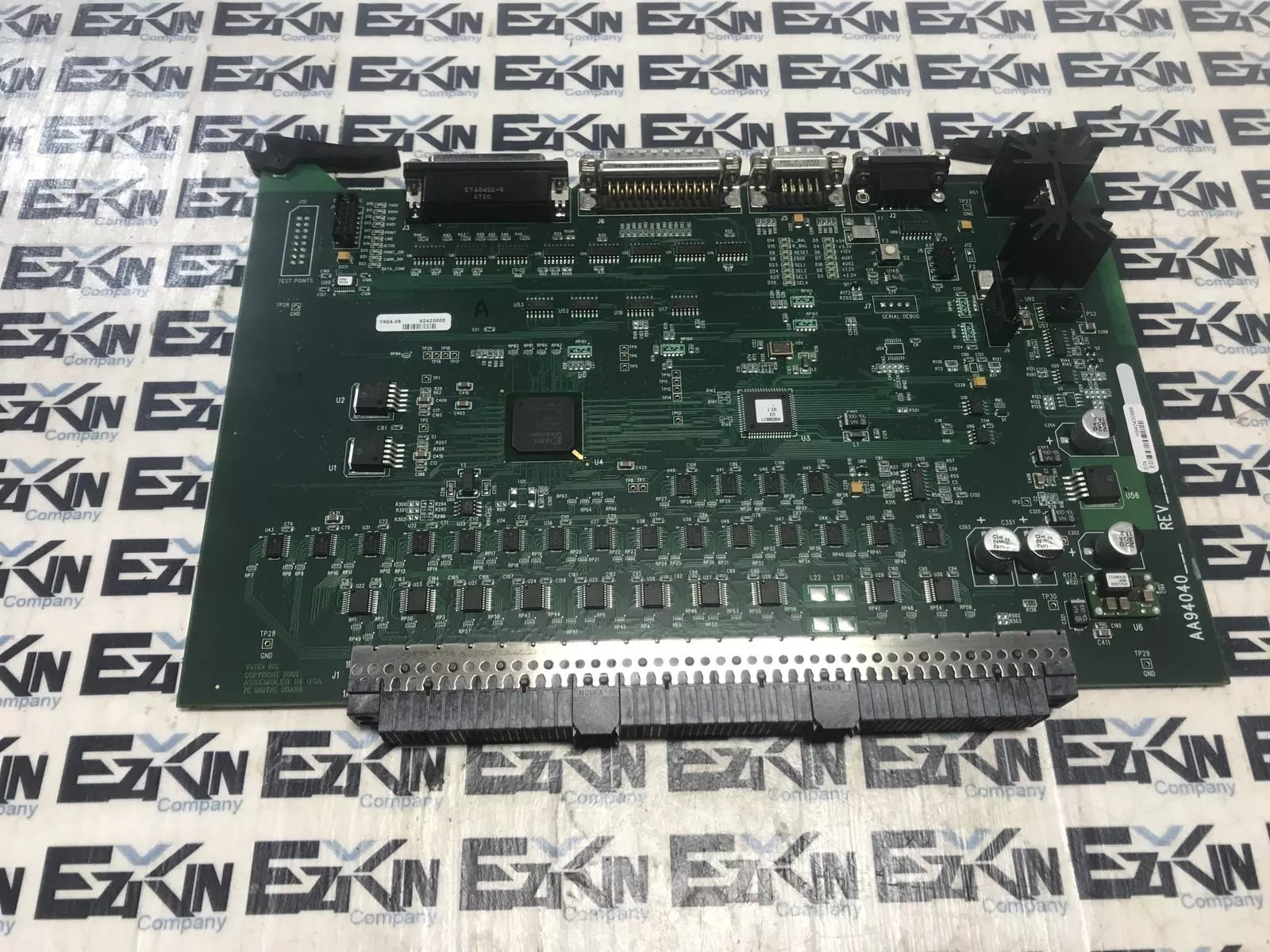

Vutek AA94040 REV. F 7C Digital Carriage Board

High-performance digital carriage control board used in Vutek wide-format printers for precise control of printhead carriage movement and communication. Designed for compatibility with 7C (7-color) systems. Part Number: AA94040 Revision: F Function: Digital carriage interface and control board Application: Printhead carriage logic for Vutek 7C printers Connectivity: Multi-pin interfaces for encoder, printhead, and signal control Voltage Compatibility: Typically 24V logic system (verify in service manual) Form Factor: Custom PCB with mounting slots for integration into printer chassis Component Type: Includes microprocessor, driver ICs, power regulation, and status LEDs Manufacturer: Vutek (EFI – Electronics For Imaging) Board Name: Digital Carriage Board Usage: Wide-format industrial inkjet printers (7-color models) Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   0.10

Depth:   6.00

Length:   16.00

Width:   10.00

SKU:   2677 4.S8.7.2B
