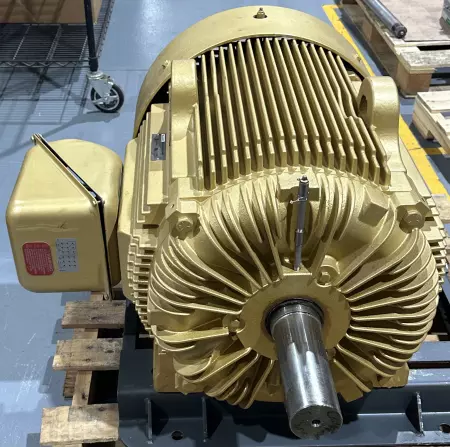

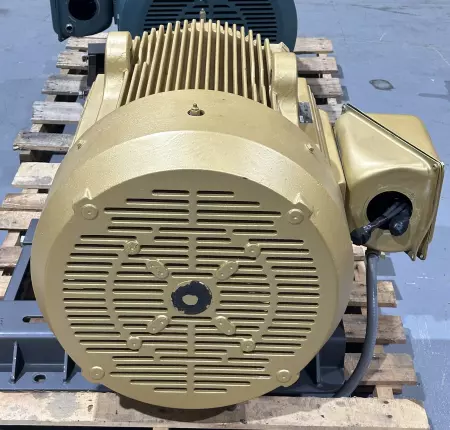

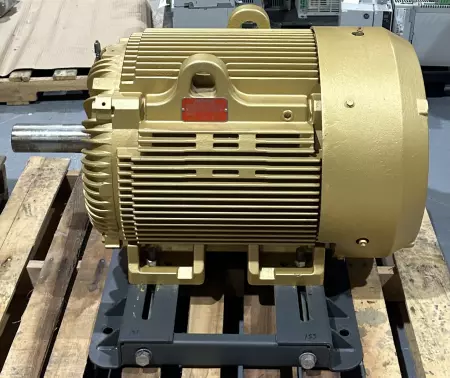

Baldor Reliance EM4400T SuperE® AC Motor, 100HP Frame 405T

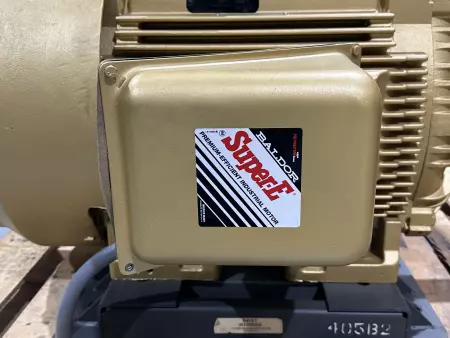

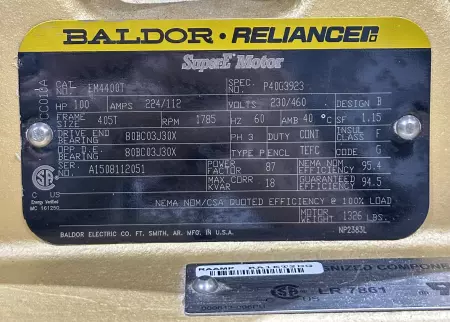

Premium efficiency industrial-grade AC motor designed for continuous-duty, high-power applications. Part of Baldor’s Super-E® line for energy-efficient performance and long-term reliability. Technical Specifications Catalog Number: EM4400T Spec Number: P40G3923 Horsepower: 100 HP Voltage: 230/460 V Current: 224 A @ 230 V / 112 A @ 460 V Speed: 1785 RPM Frequency: 60 Hz Phase: 3 Frame Size: 405T Enclosure: TEFC (Totally Enclosed Fan Cooled) Duty: Continuous Service Factor: 1.15 Insulation Class: F Design Code: B Code Letter: G Power Factor: 87 Max Corrected KVAR: 18 Drive End Bearing: 80BC03J30X Opposite Drive End Bearing: 80BC03J30X NEMA Nominal Efficiency: 95.4% Guaranteed Efficiency: 94.5% Ambient Temperature: 40°C Motor Weight: 1326 lbs Serial Number: A1508112051 Manufacturer: Baldor Electric Co., Ft. Smith, AR, USA Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   500.00

Depth:   60.00

Length:   48.00

Width:   48.00

SKU:   274002 4.R6.8.1
