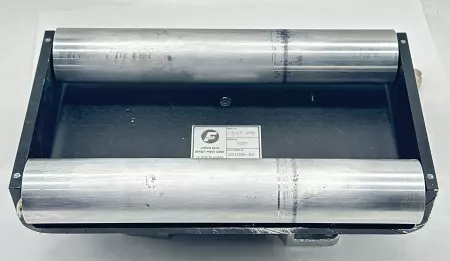

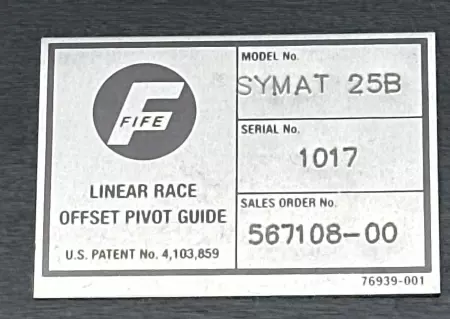

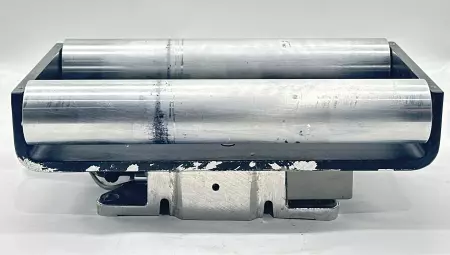

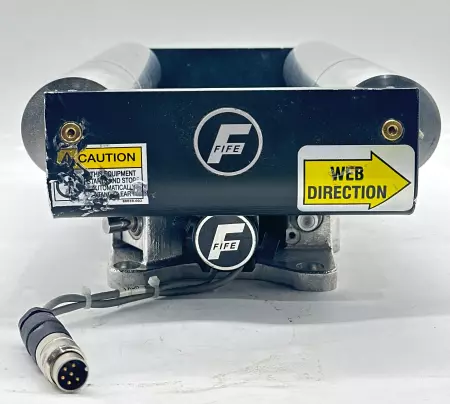

Fife SYMAT 25B Linear Offset Pivot Guide

High-precision web guiding system designed for continuous processing industries. The SYMAT 25B pivot guide uses a linear offset configuration to maintain edge or center alignment of moving webs, ideal for applications such as printing, laminating, or converting. Technical Specifications Model: SYMAT 25B Guide Type: Linear Offset Pivot Guide Web Width Capacity: Up to 650 mm Guide Force: Up to 450 N Correction Range: ±25 mm Max Web Tension: Typically up to 1,000 N (depending on setup) Actuation: Electromechanical (via stepper or servo motor, depending on system) Sensor Compatibility: Compatible with Fife edge and centerline sensors Frame Type: Compact aluminum profile Mounting Orientation: Horizontal or vertical web path Applications: Printing, coating, laminating, textile, and film processing Control Interface: Compatible with Fife control systems (e.g., SE-11, DSE series) Environment Rating: Industrial, non-corrosive environments Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   10.00

Depth:   12.00

Length:   14.00

Width:   20.00

SKU:   274005 4.S5.18.1
