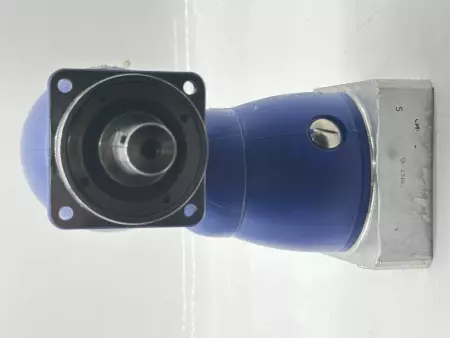

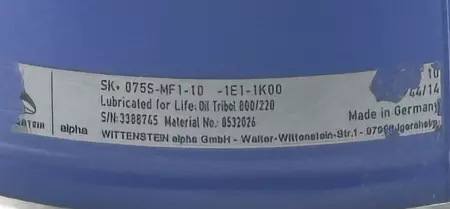

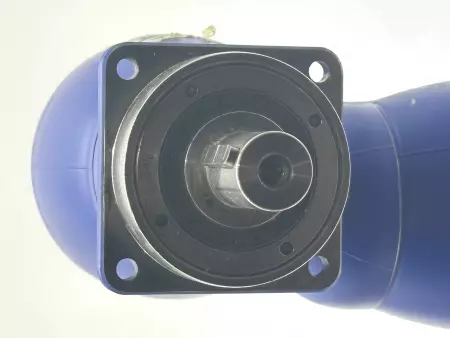

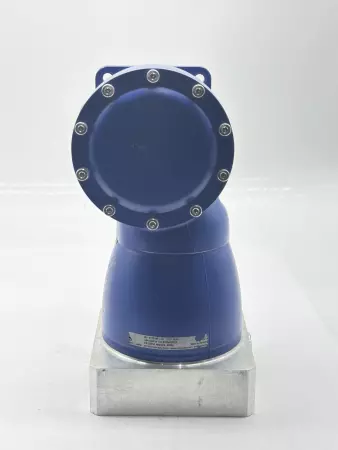

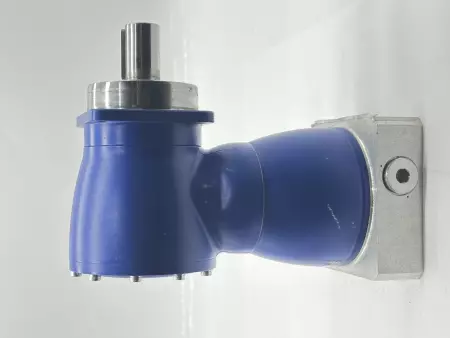

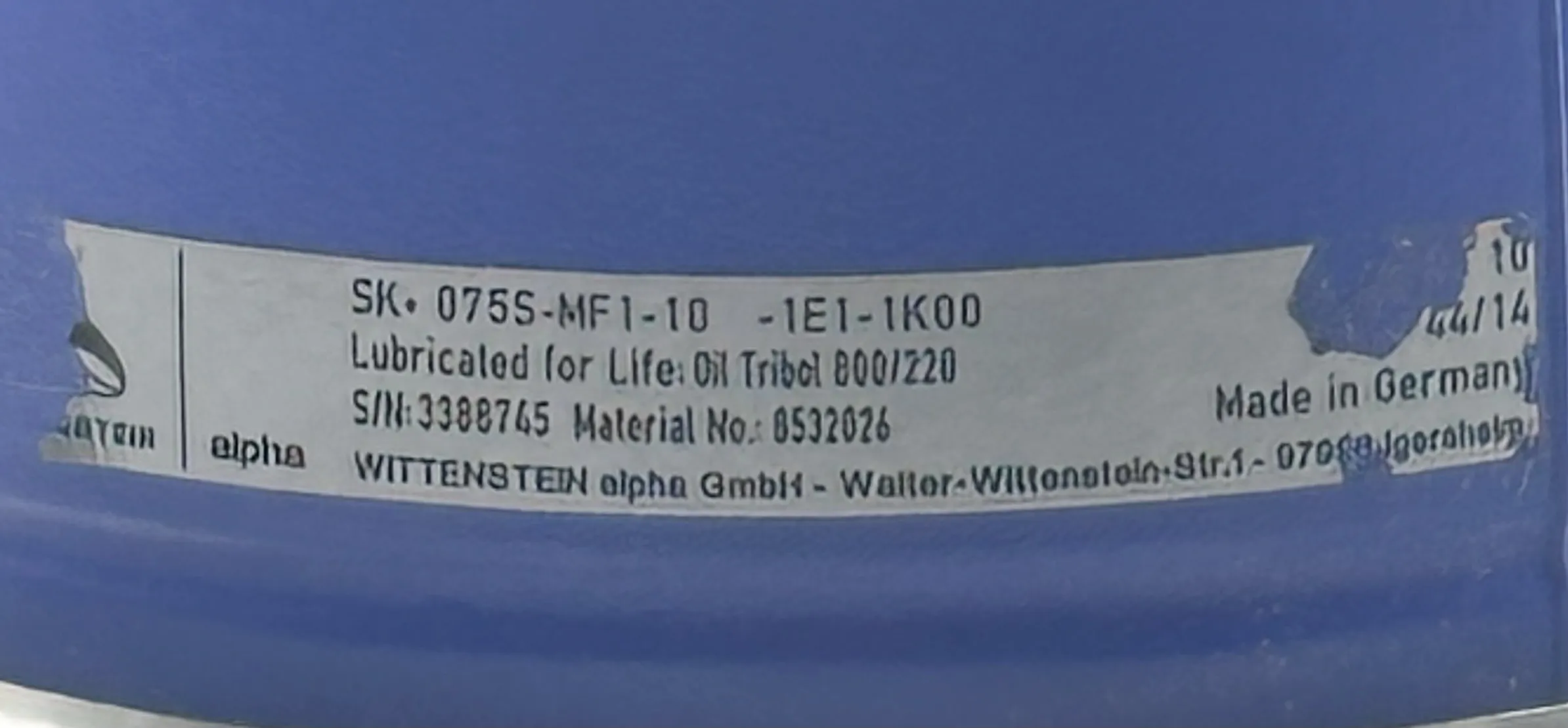

Alpha Wittenstein SK 075S-MF1-10-1E1-1K00 Right Angle Gearbox, Ratio 10:1

High-precision right-angle servo gearbox from the Alpha Wittenstein SP+K series, designed for compact installations with optimal performance in dynamic applications. Combines spiral bevel gear input with planetary output for high torsional stiffness and minimal backlash. Technical Specifications: Manufacturer: Wittenstein alpha GmbH Model: SK 075S-MF1-10-1E1-1K00 Series: SP+K (Right-angle planetary gearbox) Frame Size: 075 mm Gear Ratio: 10:1 Mounting Type: MF1 (motor flange mount with smooth shaft input) Input Type: Right-angle spiral bevel gear Output Shaft: Solid shaft with keyway Backlash (Standard Precision Class): ≤6 arcmin Torsional Rigidity: High (optimized for servo applications) Lubrication: Lifetime lubricated (synthetic gear oil) Enclosure Rating: IP64 (with sealed housing) Maximum Input Speed: Up to 6000 RPM Efficiency: – Bevel stage: ~95% – Planetary stage: ~97% Material: – Housing: High-strength aluminum alloy – Gears: Case-hardened alloy steel Temperature Range: -25°C to +90°C Orientation: Right-angle (90° input/output configuration) Applications: Robotics, packaging, CNC, material handling, and other servo-driven systems requiring compact, right-angle gear reduction Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   10.00

Depth:   8.00

Length:   8.00

Width:   16.00

SKU:   274006 4.S6.15.1
