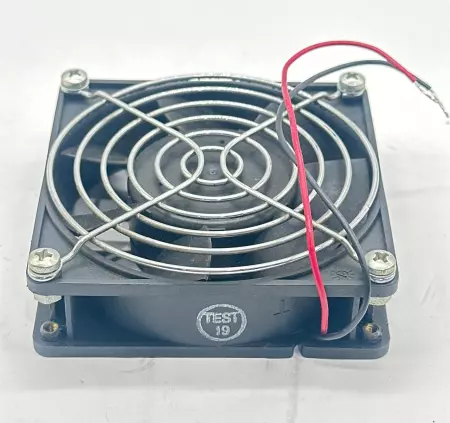

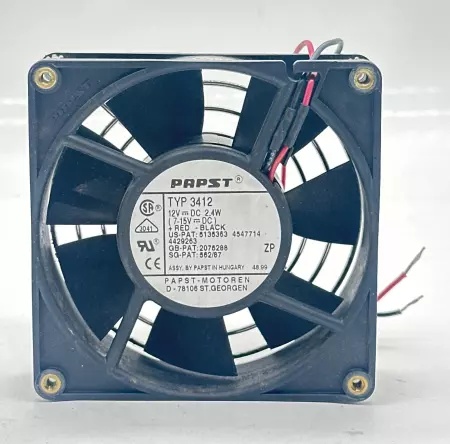

Papst TYP 3412 Electronic Component Fan

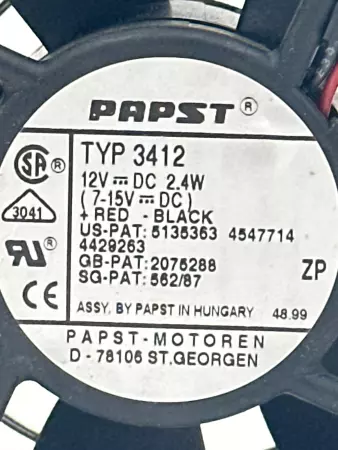

Compact axial DC fan engineered for efficient cooling in electronic equipment, designed for reliability and long service life in industrial and computing environments. Technical Specifications Model: TYP 3412 Operating Voltage: 12 VDC Voltage Range: 7–15 VDC Power Consumption: 2.4 W Connection: +Red / –Black Bearing Type: Ball bearing Airflow: Approx. 33.6 m³/h (typical for 3412 model) Noise Level: Approx. 32 dBA Dimensions: 80 x 80 x 25 mm Mounting: Flange mount Certifications: CE, UL Recognized, CSA Patents: US 5135363, 4547714, 4429263; GB 2075288; SG 562/87 Manufacturer: PAPST-Motoren Assembly Location: Hungary

Condition: Used

Weight:   3.00

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   274012 4.S4.8.4
