In stock 1 available

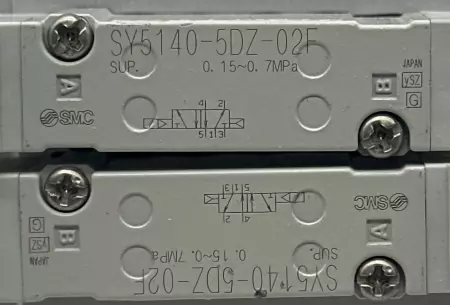

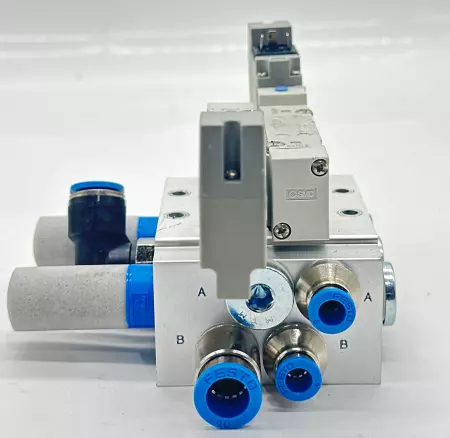

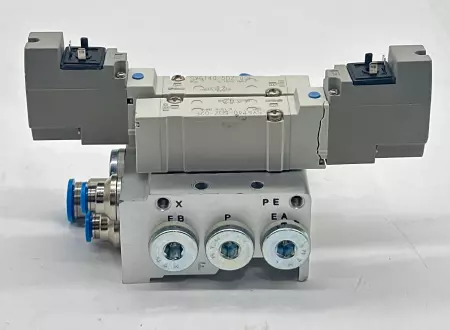

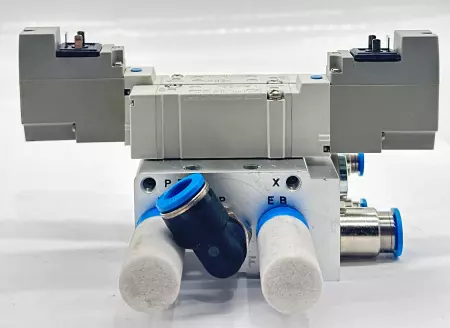

Compact and high-speed 5-port solenoid valve from the SY5000 series, designed for precise pneumatic control in automation systems. Features a base-mounted configuration with internal pilot and integrated surge protection, suitable for high-cycle and space-constrained applications. Technical Specifications: Series: SY5000 Model: SY5140-5DZ-02F Valve Type: 5-port solenoid valve Configuration: – 2-position – Single solenoid actuation (non-latching) – Internal pilot-operated Mounting: Base mounted (subplate) Manifold: Included (for multi-valve integration, manifold specs vary by setup) Operating Voltage: 24 VDC Electrical Connection: DIN terminal with connector Surge Suppressor: Integrated (W-type with light/surge protection) Manual Override: Non-locking push type Port Size: 1/4" (02) Thread Type: G-thread (British Standard Pipe Parallel) Flow Rate: Approx. 1,000 L/min (depends on pressure and load) Working Pressure Range: 0.15 to 0.7 MPa (1.5 to 7 bar) Ambient and Fluid Temperature: -10°C to +50°C Seal Material: NBR (standard) Applications: Industrial automation, robotics, pneumatic clamping, packaging, and machine tools This valve is part of a modular system that supports flexible manifold assembly, making it suitable for multi-valve control blocks in complex pneumatic circuits. Please review pictures carefully and let us know if you have any questions!
Condition: New
Weight: 4.00
Depth: 8.00
Length: 8.00
Width: 8.00
SKU: 274585 4.S4.8.4
