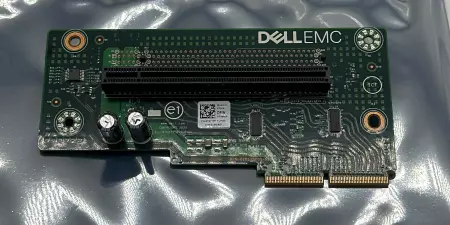

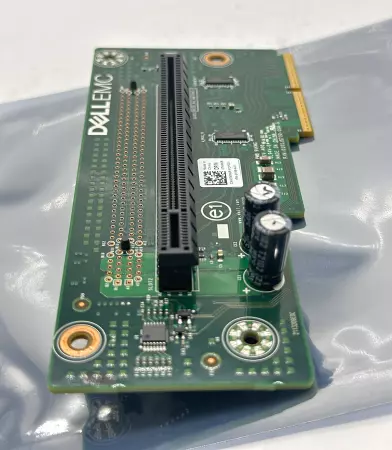

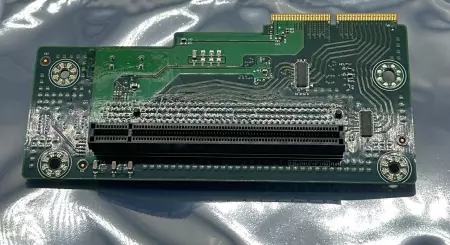

Dell 0T4M6R CN-0T4M6R-FCP00 PCIe Riser Expansion Card

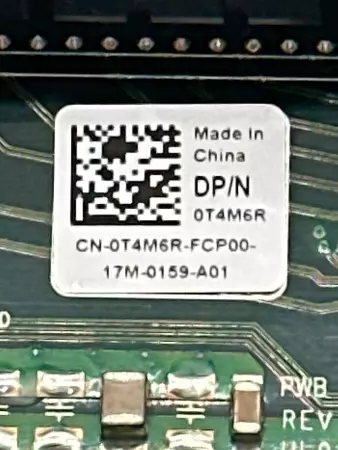

This is a PCIe riser expansion card, designed by Dell EMC for specific PowerEdge server models. It allows the connection of additional PCI Express expansion cards (e.g., NICs, RAID controllers, GPUs) in 1U or 2U rack servers where vertical space is limited and horizontal card mounting is required. Technical Identification & Function: Part Number (DP/N): 0T4M6R Label Code: CN-0T4M6R-FCP00-... Description: PCIe Riser Board Compatible Systems: Typically used in Dell PowerEdge R-series servers such as R640, R740, or R750 (exact match depends on configuration and revision) Connector Interface: – Gold-finger PCIe edge connector (plugs into motherboard PCIe slot) – Horizontal x8/x16 PCIe slot (receives PCIe expansion card) Purpose: Extends a motherboard PCIe slot to allow horizontal mounting of add-on cards Manufacture Date: Marked as ©2020, Revision A00 Made in: China Application: This board is crucial for systems where PCIe cards (e.g., SAS controllers, network cards, or GPUs) must be mounted in tight rack environments and cannot be installed vertically due to height restrictions. If you're replacing or expanding PCIe functionality in a Dell server, this riser board enables that flexibility. Please review pictures carefully and let us know if you have any questions!

Condition: New

Weight:   3.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   274889 4.S10.2.2
