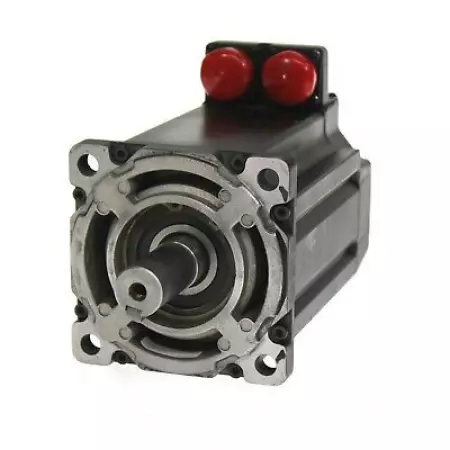

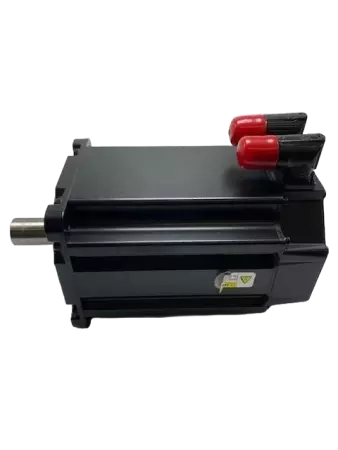

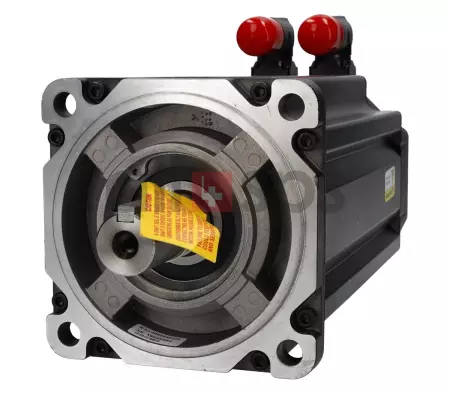

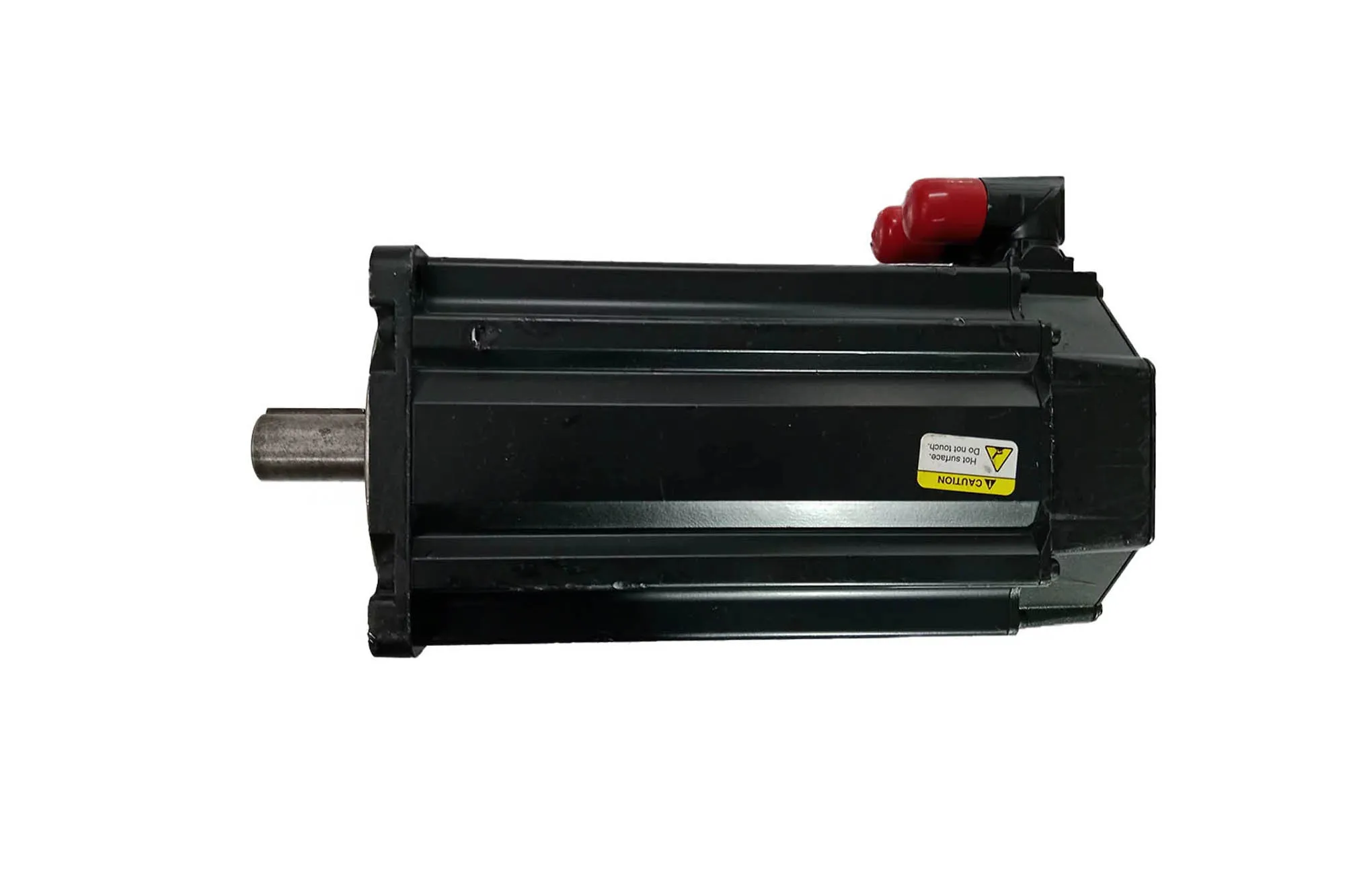

Allen-Bradley MPL-B540K-MJ72AA SER.A AC Servo Motor, 7.25HP - IN GERMANY

The Allen-Bradley MPL-B540K-MJ72AA is a high-performance Kinetix MP-Series AC rotary servo motor designed for demanding automation applications. It provides precise motion control, high torque density, and continuous-duty operation at 460V. Motor Type: AC Servo Motor (Inverter Duty, Kinetix MP-Series) Catalog Number: MPL-B540K-MJ72AA Voltage: 460 V RMS line-to-line, 3-phase Power: 5.4 kW / 7.25 HP Maximum Speed: 4000 RPM Frequency Range: 0–267 Hz Continuous Stall Torque: 19.4 Nm Peak Stall Torque: 20.5 Nm Continuous Current: 20.5 A Back EMF (Ke): 143 V/krpm (line-to-line, peak) Resistance (L-L, 25°C): 0.64 Ohms Insulation Class: 180(H) Protection: IP50 (IP66 with seal) Ambient Temperature: 40°C PWM Source: Voltage Weight: 15 kg / 33 lb Mounting: Flange Feedback: MPL series standard (typically encoder or high-resolution feedback device) Cooling: Natural convection (TENV) Country of Manufacture: Mexico Duty Cycle: Continuous Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   33.00

Depth:   6.00

Length:   6.00

Width:   10.00

SKU:   274891 N.A
