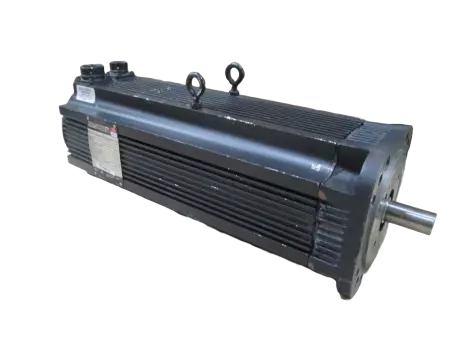

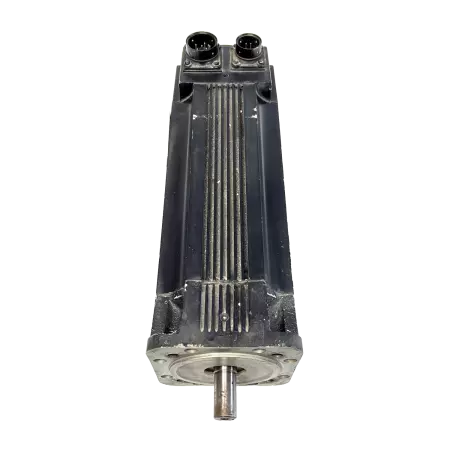

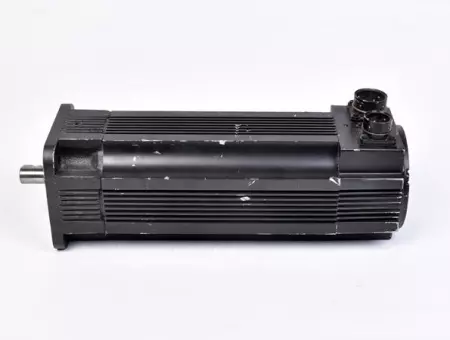

Allen-Bradley 1326AB-B530E-21-K5 AC Servo Motor, 4.3kW - IN GERMANY

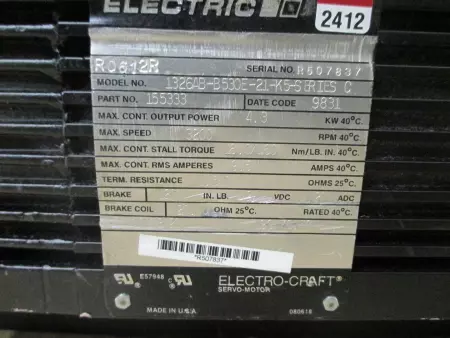

The Allen-Bradley 1326AB-B530E-21-K5 is a high-performance AC servo motor from the Electro-Craft 1326AB series, designed for industrial motion control systems. It offers reliable torque output, high-speed performance, and is optimized for continuous-duty applications. Motor Type: AC Servo Motor Series: C Catalog Number: 1326AB-B530E-21-K5 Part Number: 155333 Power Rating: 4.3 kW Operating Voltage: 460 VAC, 3-phase Max. Continuous RMS Current: 9.5 A (at 40°C) Maximum Speed: 3200 RPM Max. Continuous Stall Torque: 13.6 Nm (120 in-lb at 40°C) Terminal Resistance: 3.5 Ohms (L-L @ 25°C) Brake Torque: 120 in-lb Brake Voltage: 24 VDC Brake Coil Resistance: 27 Ohms @ 25°Ce: Resolver Shaft: Keyed Mounting: Flange Enclosure: TENV (Totally Enclosed Non-Ventilated) Insulation Class: F Service Factor: 1.0 Feedback: Resolver (standard for “K5” configuration) Ambient Temperature: 40°C Duty Rating: Continuous Application: CNC, robotics, automated machinery, and factory automation systems

Condition: Used

Weight:   55.00

Depth:   6.00

Length:   6.00

Width:   10.00

SKU:   274893 N.A
