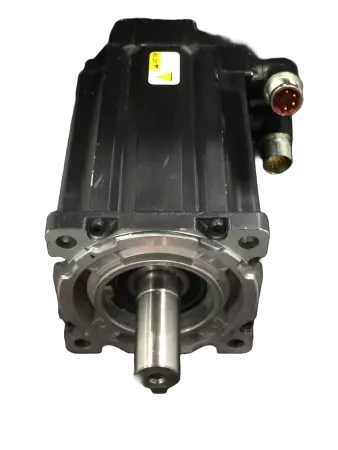

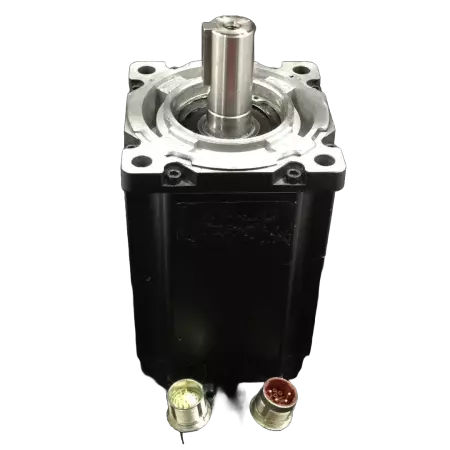

Allen-Bradley MPL-B4540F-SJ72AA SER.A AC Servo Motor, 3.5HP - IN GERMANY

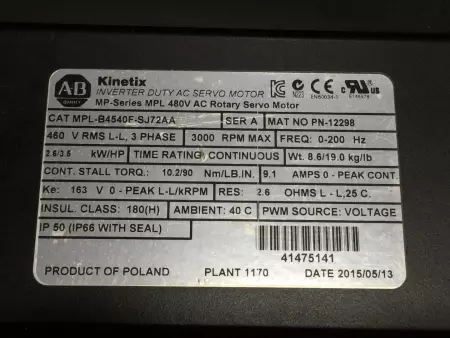

The Allen-Bradley MPL-B4540F-SJ72AA is a high-performance Kinetix MP-Series AC servo motor designed for dynamic motion applications. It offers compact power, high torque density, and is suited for continuous-duty use in industrial automation systems. Motor Type: AC Servo Motor (Kinetix MP-Series) Catalog Number: MPL-B4540F-SJ72AA Voltage: 460 V RMS L-L, 3-phase Continuous Current: 9.1 A Power Rating: 2.6 kW / 3.5 HP Maximum Speed: 3000 RPM Continuous Stall Torque: 10.2 Nm / 90 lb-in Frequency: 0–200 Hz Peak Torque: 19.5 Nm Feedback: High-resolution encoder (multi-turn, Hiperface DSL or equivalent) Insulation Class: 180(H) Protection: IP50, IP65 (with shaft seal) Cooling Method: Natural convection (TENV) Mounting: Flange Shaft: Keyed Weight: 8.6 kg / 19.0 lb Back EMF (Ke): 163 V/krpm (L-L, peak) Resistance (L-L, 25°C): 2.6 Ohms Feedback: High-resolution encoder (SJ72AA configuration) Ambient Temperature: 40°C Duty Rating: Continuous Application: Precision automation, robotics, packaging, and machine tools

Condition: Used

Weight:   19.00

Depth:   12.00

Length:   12.00

Width:   12.00

SKU:   274894 N.A
