Allen-Bradley 1794-IR8 SER.A 8-Ch Flex I/O Analog RTD Input Module - IN GERMANY

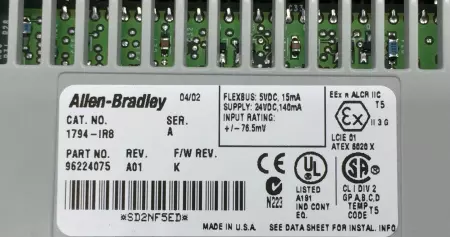

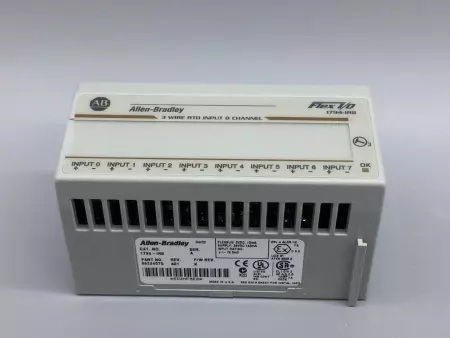

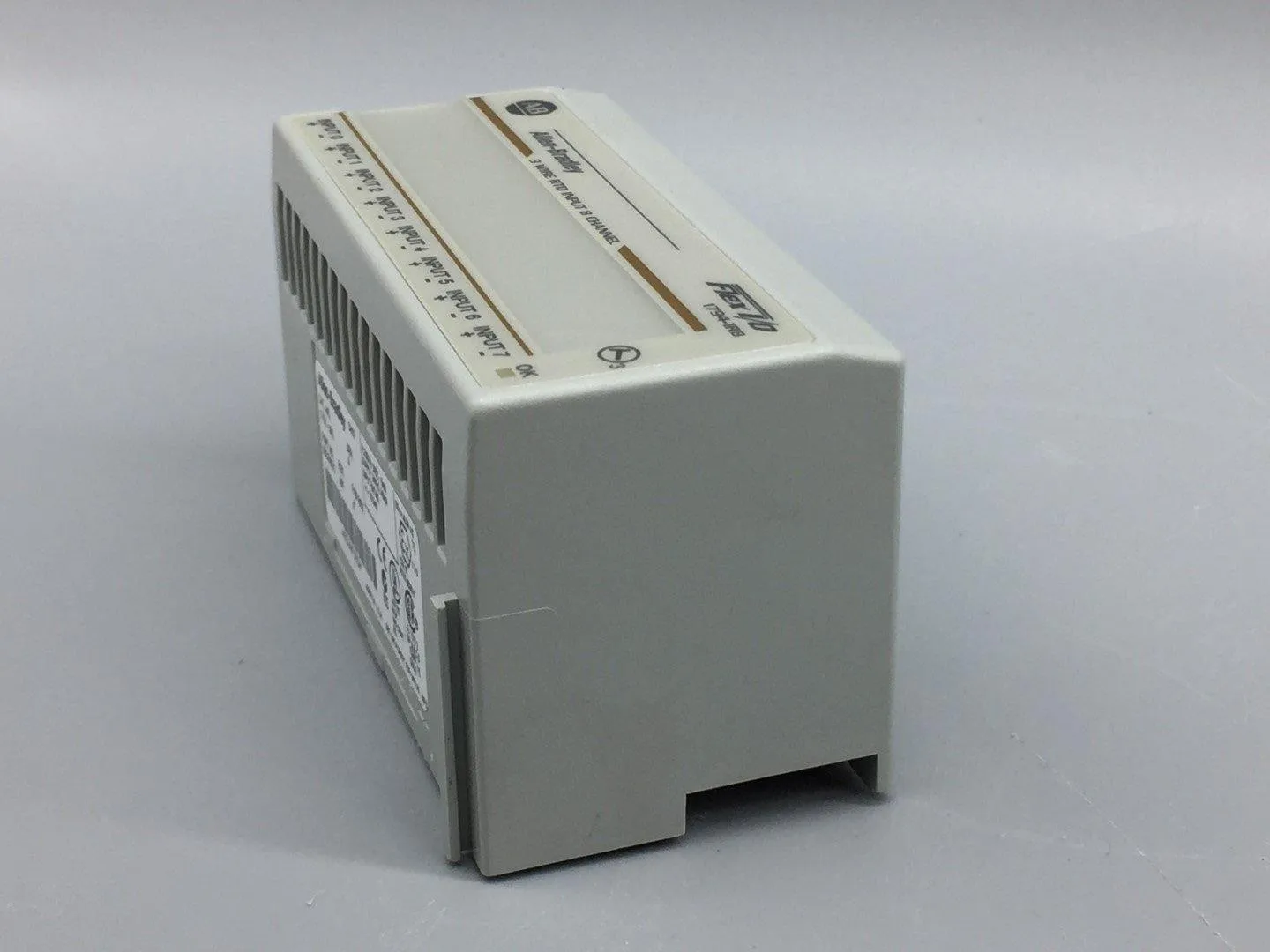

The Allen-Bradley 1794-IR8 Series A is a Flex I/O analog input module specifically designed for RTD (Resistance Temperature Detector) signal acquisition. It supports high-resolution temperature measurements and is suitable for distributed temperature monitoring in industrial environments. Module Type: 8-Channel RTD Analog Input Module Catalog Number: 1794-IR8 Series: A Part Number: 96224075 Input Channels: 8 Input Signal Type: RTD (±76.5 mV input rating) FlexBus Power: 5 VDC, 15 mA External Power Supply: 24 VDC, 140 mA Explosion Protection: EEx n ALCL IIC T5 Certifications: CE, UL, CSA, ATEX (LCIE 01 ATEX 6020 X) Class Rating: Class I Div 2, Groups A, B, C, D Temperature Code: T5 Mounting: DIN rail (FLEX I/O system) Country of Manufacture: USA Application: Distributed temperature monitoring using RTD sensors in hazardous and standard environments Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   1.50

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   274897 N.A
