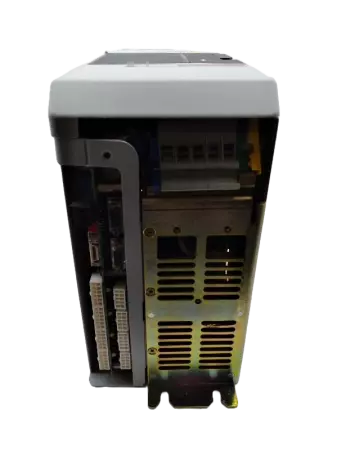

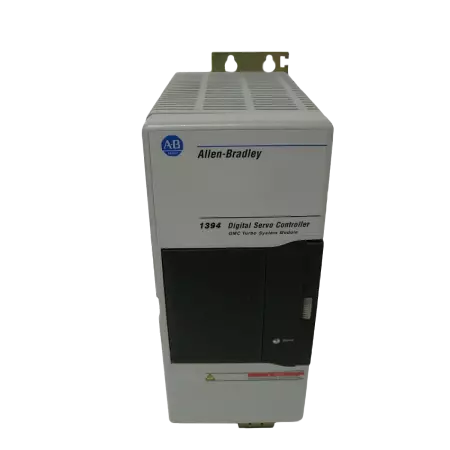

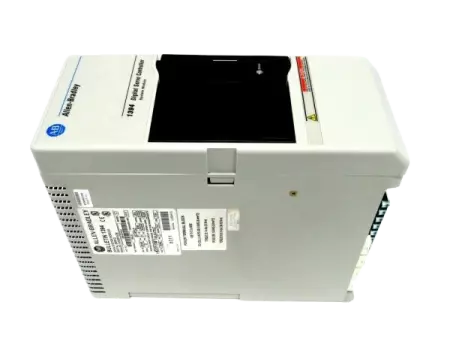

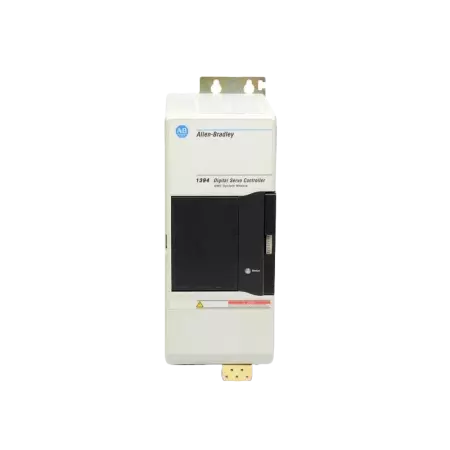

Allen-Bradley 1394-SJT22-T-RL SER.A Servo Drive Controller, 22kW - IN GERMANY

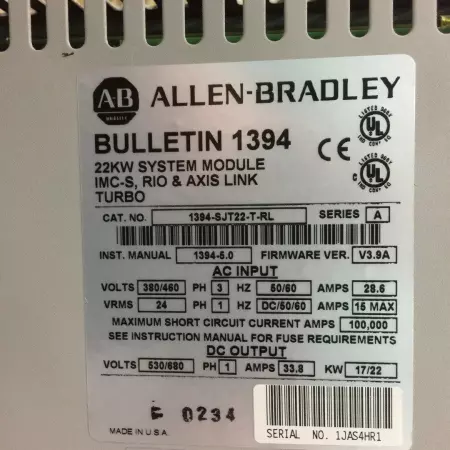

The Allen-Bradley 1394-SJT22-T-RL is a Bulletin 1394 IMC-S Turbo system module that serves as a high-performance servo drive controller with integrated Remote I/O and Axis Link support. With a 22 kW power rating, it's designed for complex multi-axis motion control systems. Module Type: AC Servo Drive Controller (System Module) Catalog Number: 1394-SJT22-T-RL Series: A Power Rating: 22 kW (maximum), 17 kW (nominal) Firmware Version: V3.9A Instruction Manual: 1394-5.0 AC Input Voltage: 380/460 V, 3-phase AC Input Frequency: 50/60 Hz AC Input Current: 28.6 A Control Input (VRMS): 24 V, 1-phase, DC/50/60 Hz, 15 A max Maximum Short Circuit Current Rating: 100,000 A DC Output Voltage: 530–680 VDC DC Output Phase: 1-phase DC Output Current: 33.8 A Application: Multi-axis coordinated motion control, high-speed packaging, CNC, robotics Interfaces: IMC-S, RIO, Axis Link Mounting: Panel-mounted Country of Manufacture: USA Compliance: UL, CE, cUL Certified

Condition: New

Weight:   40.00

Depth:   12.00

Length:   12.00

Width:   12.00

SKU:   274899 N.A
