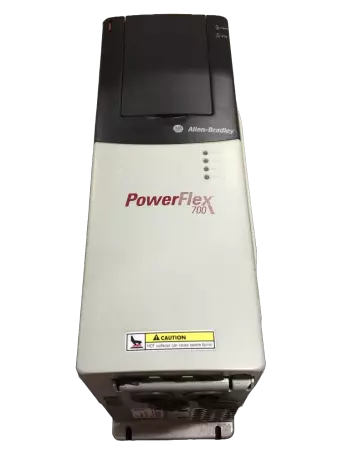

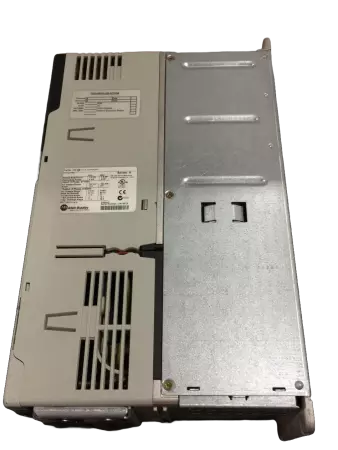

Allen-Bradley 20BC5P0A0AYNANC0 SER.A Poweflex 700 AC Drive, 2.2kW - IN GERMANY

The Allen-Bradley 20BC5P0A0AYNANC1 is a PowerFlex 700 AC drive designed for adjustable frequency motor control in standard and heavy-duty industrial applications. This drive supports vector and V/Hz control, offering flexibility and performance. Drive Type: PowerFlex 700 AC Drive Catalog Number: 20BC5P0A0AYNANC1 Series: A Frame: 0 Power Rating (400V): 2.2 kW (Normal Duty), 1.5 kW (Heavy Duty) Power Rating (480V): 3 HP (Normal Duty), 2 HP (Heavy Duty) Input Voltage: 3-phase, 47–63 Hz Input Voltage Range: 342–440 VAC (400V), 432–528 VAC (480V) Input Current: 4.6 A (400V), 3.9 A (480V) Output Voltage Range: 0–400 V (50 Hz base) / 0–460 V (60 Hz base) Output Frequency Range: 0–400 Hz Continuous Output Current: 5.5 A 1-Min Overload Current: 6.5 A 3-Sec Overload Current: 7.5 A I/O Power: 24V DC Control Method: Sensorless Vector Control, Vector Control with Encoder, or Volts/Hertz Enclosure: UL Type 1 / IP20 Compliance: UL, CE, C-Tick, N223 Application: Pumps, fans, conveyors, and other adjustable speed motor applications Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   30.00

Depth:   12.00

Length:   12.00

Width:   12.00

SKU:   274900 N.A
