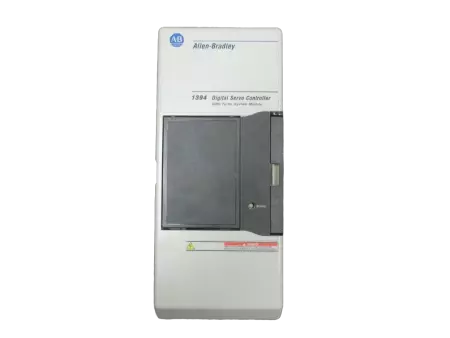

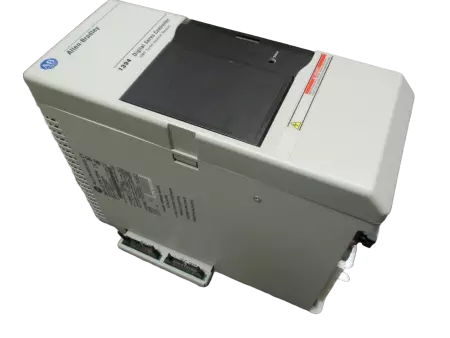

Allen-Bradley 1394C-SJT22-T-RL SER.C Digital Servo Controller, 22kW -IN GERMANY

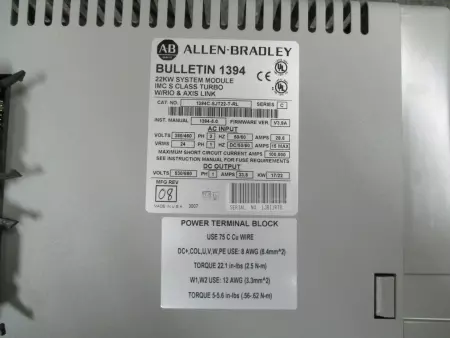

Manufacturer: Allen-Bradley (Rockwell Automation) Model: 1394C-SJT22-T-RL Series: C Bulletin: 1394 Type: System Module Power Rating: 22 kW Application: GMC S Class Turbo with RIO & Axis Link AC Input: Voltage: 380/460 V Phase: 3 PH Frequency: 50/60 Hz Voltage RMS (VRMS): 24 V Current: 28.6 A DC Input: 24 VDC ±10% DC Bus: 530–680 VDC Current: 15 A max Max Short Circuit Current: 100,000 A Note: See instruction manual for fuse requirements DC Output: Voltage: 530/680 VDC Phase: 1 PH Amps: 33.8 A Power: 17/22 kW Power Terminal Block Requirements: Wire Type: 75°C Cu wire DC+, DC-, U, V, W, PE: 8 AWG (8.4 mm²) Torque: 22.1 in-lbs (2.5 N·m) W1, W2 Use: 12 AWG (3.3 mm²) Torque: 5.5–6.2 in-lbs (0.56–0.62 N·m) Please review pictures carefully and let us know if you have any questions!

Condition: New

Weight:   20.00

Depth:   12.00

Length:   12.00

Width:   12.00

SKU:   274902 N.A
