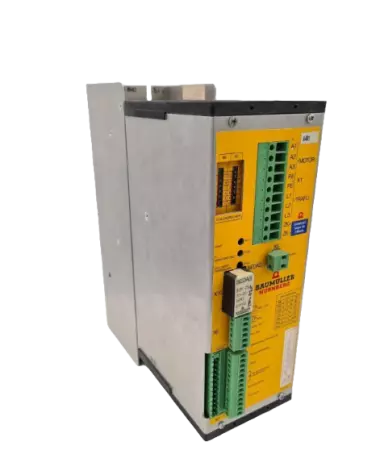

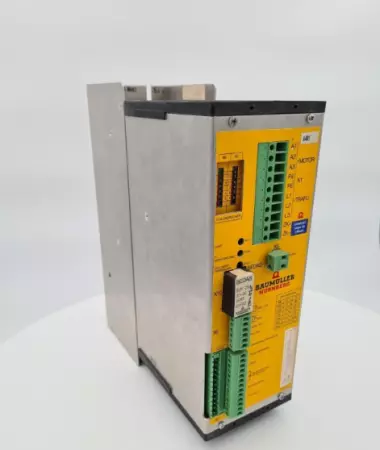

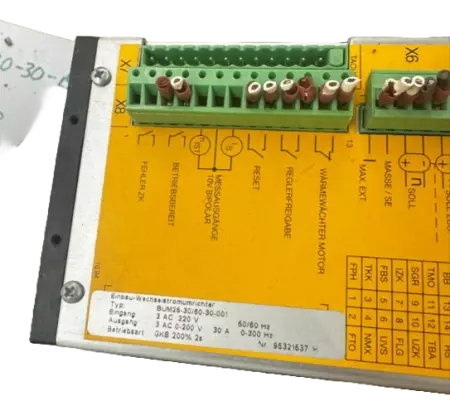

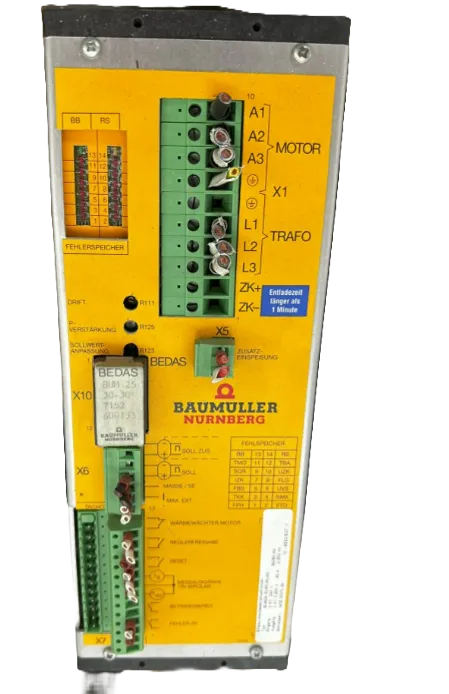

Baunmuller BUM25 30/60-30-001 Servo Drive, 10HP 30A - IN GERMANY

High-performance digital servo drive designed for precise control of synchronous and asynchronous servo motors in demanding automation and motion control applications. Offers advanced feedback processing and dynamic performance with high peak current capability. Technical Specifications: Manufacturer: Baumüller Model: BUM25 30/60-30-001 Drive Type: Digital Servo Drive Power Rating: 10 HP (7.5 kW) Peak Output Current: 60 A Continuous Output Current: 30 A DC Link Voltage: 300 VDC (rated) Input Voltage: Supplied via external DC bus (matched to 300 VDC link) Control Mode: Position, speed, and torque control Motor Compatibility: Brushless synchronous and asynchronous servo motors Feedback Support: Resolver, encoder, or optional digital feedback systems Cooling: Convection or forced air (model-dependent) Mounting: Panel mount (vertical orientation recommended) Protection Features: Overcurrent, overtemperature, short-circuit, undervoltage lockout Communication Interfaces: Serial interface or optional fieldbus (Profibus, CANopen, etc.) Application Areas: CNC machinery, packaging systems, robotics, printing, textile, and general automation systems Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   16.00

Depth:   12.00

Length:   12.00

Width:   12.00

SKU:   274908 N.A
