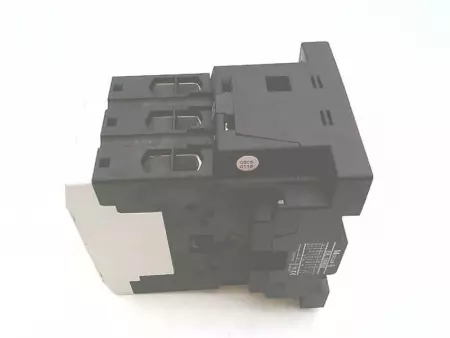

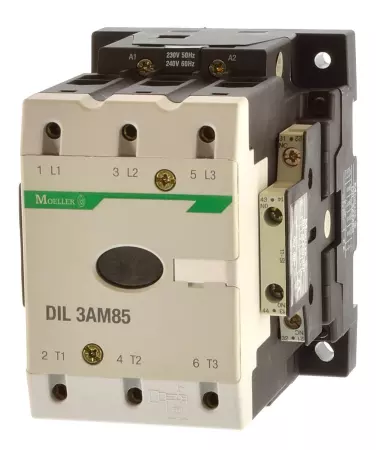

Moeller DIL3AM85/22 Contactor, 600VAC 100A Max - IN GERMANY

Heavy-duty 3-pole power contactor used for motor and load switching, featuring auxiliary contacts and designed for industrial applications requiring high current handling and reliable performance in AC or DC circuits. Technical Specifications: Manufacturer: Moeller (now Eaton) Model: DIL3AM85/22 Alternative Model Marking: 3AM85 AC-3 Rating (Motor Load Switching): – 200V: 30 HP – 240V: 30 HP – 480V: 75 HP – 600V: 100 HP DC Rating: – 115V: 10 HP – 230V: 20 HP Poles: 3 main poles Auxiliary Contacts: 2 NO + 2 NC (denoted by “/22”) Maximum Voltage: 600V AC / 250V DC Maximum Current: 100 A Interrupting Capacity: 10 kA RMS at 600V AC (suitable for UL/CSA short-circuit ratings) Torque Tightening Spec: – 53 lb-in for main terminals – Wire size: AWG 10 (single), AWG 2 (double) Mounting: Panel mount Certifications: UL, CSA, CE Application: Motor control, elevator duty, heating, HVAC, lighting, and industrial load switching systems

Condition: Used

Weight:   2.00

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   274910 N.A
