In stock 2 available

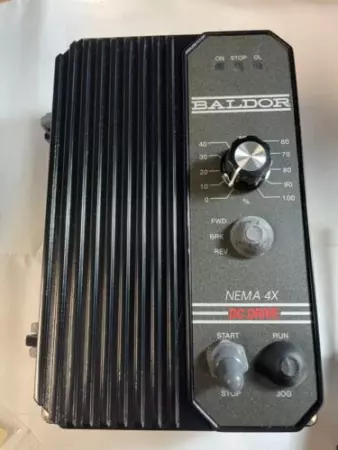

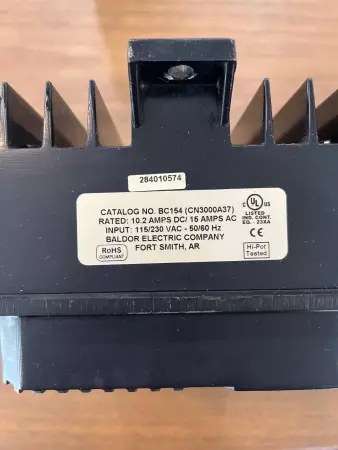

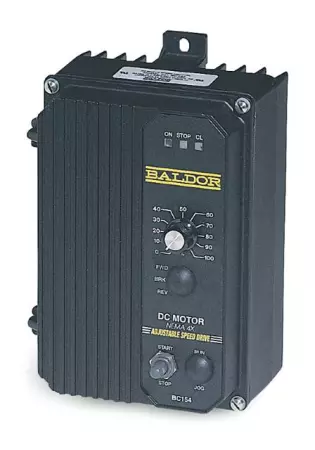

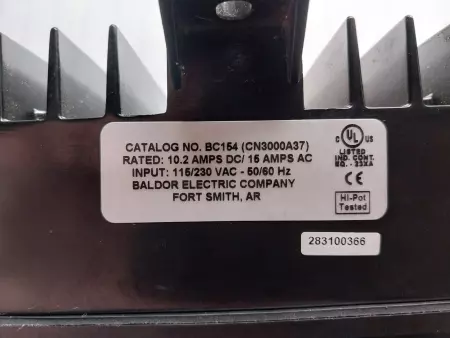

The Baldor BC154 is a non-regenerative, variable-speed DC motor controller housed in a rugged NEMA 4X (IP65) enclosure, making it ideal for washdown and harsh industrial environments. It is designed for precise speed and torque control of permanent magnet (PM) and shunt-wound DC motors. Manufacturer: Baldor-Reliance (ABB) Model: BC154 Enclosure: NEMA 4X / IP65 (washdown-duty, corrosion-resistant) Input Voltage: 115/230 VAC, 50/60 Hz (jumper selectable) Output Voltage: 90 VDC (at 115 VAC input), 180 VDC (at 230 VAC input) Output Current: 10.2 A DC Input Current: 15 A AC Horsepower Range: 1/50 to 2 HP Motor Compatibility: Permanent Magnet (PM) and Shunt-Wound DC motors Control Modes: Selectable Speed or Torque control via jumper Speed Range: 50:1 Field Supply: Supports full or half-voltage field connections for shunt-wound motors Adjustable Parameters: Acceleration, Deceleration, Minimum Speed, Maximum Speed, Current Limit, IR Compensation Protection Features: Electronic overload protection, anti-demagnetization circuit, short circuit and transient protection Feedback Options: Armature voltage or tachometer feedback Control Interface: Front-panel 5K potentiometer (remote operation optional) Relay Output: Run/Fault relay (0.5 A at 125 VAC / 1 A at 30 VDC) Dimensions (H × W × D): Approximately 9.5 in × 5.9 in × 5 in Weight: Approximately 5 lbs Certifications: UL, cUL, CE compliant Typical Applications: Conveyors, mixers, packaging machinery, and other applications requiring variable speed and constant torque This drive is well-suited for applications requiring reliable performance in environments exposed to moisture, dust, or corrosive elements.
Condition: Used
Weight: 5.00
Depth: 12.00
Length: 12.00
Width: 12.00
SKU: 274912 N.A
