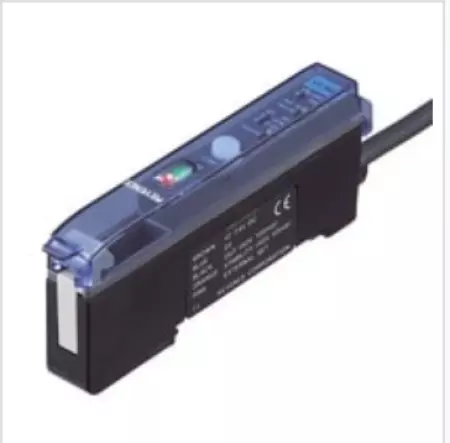

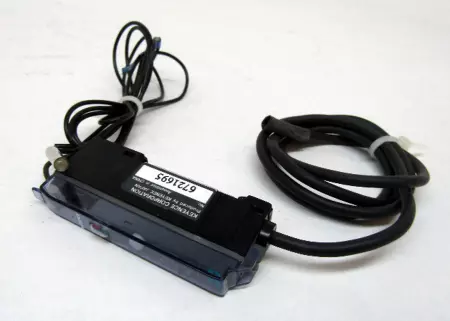

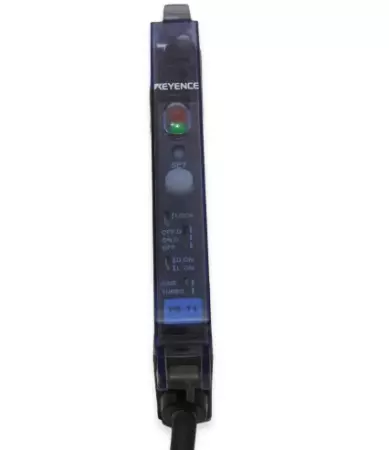

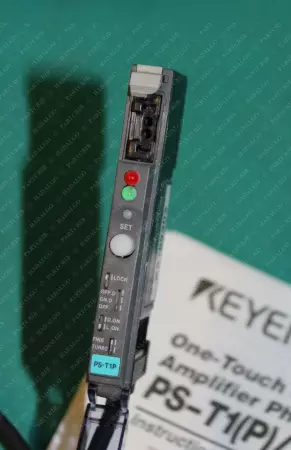

Keyence PS-T1P Photoelectric Sensor/Amplifier - IN GERMANY

The Keyence PS-T1P is a PNP-output main amplifier unit from the PS-T series, designed for use with separate-head photoelectric sensors. It offers high-speed response and flexible configuration options, making it suitable for various industrial automation applications. Model: PS-T1P Type: Main amplifier unit Output Type: PNP open-collector Response Time: 500 µs Operation Modes: LIGHT-ON / DARK-ON (switch-selectable) Indicators: Red LED (output), Green LED (stable operation), Yellow LED (calibration) Timer Functions: ON-delay: 40 ms, OFF-delay: 40 ms, Timer OFF (switch-selectable) External Calibration Input: Non-voltage input (contact or solid-state) Control Output: PNP, 100 mA max. (30 V max.), Residual voltage: 1 V max. Stability Output: PNP, 50 mA max. (30 V max.), Residual voltage: 1 V max. Protection Circuits: Reverse polarity protection, Over-current protection, Surge absorber Expandable Units: Supports connection of up to 16 expansion units (total of 17 units) Power Supply Voltage: 12 to 24 VDC ±10%, Ripple (P-P) 10% or less Current Consumption: 35 mA or less Ambient Temperature: -10 to +55 °C (14 to 131 °F) Relative Humidity: 35 to 85% RH (no condensation) Vibration Resistance: 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions Shock Resistance: 500 m/s², 3 times in each of the X, Y, and Z directions Case Material: Polycarbonate (body and cover) Weight: Approximately 75 g (including 2 m cable) Mounting: DIN-rail mountable Please review pictures carefully and let us know if you have any questions!

Condition: New

Weight:   0.90

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   274914 N.A
