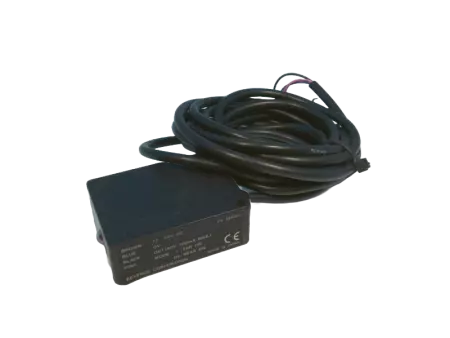

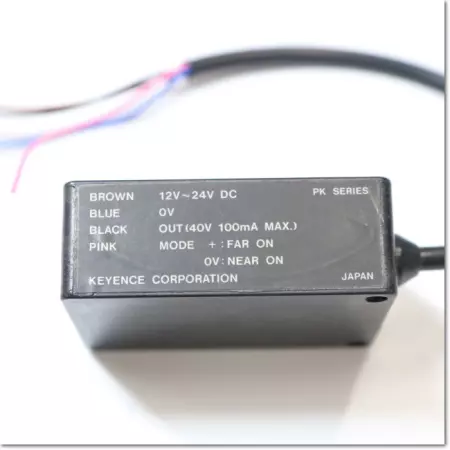

Keyence PK-72 Fixed Distance Photoelectric Sensor - IN GERMANY

The Keyence PK-72 is a fixed-distance photoelectric sensor designed for long-range detection applications. It offers reliable performance in detecting both transparent and opaque objects within a specified range. Manufacturer: Keyence Model: PK-72 Type: Fixed-distance photoelectric sensor Detecting Distance: 80 to 200 mm (with 10 × 10 cm white mat paper) Light Source: Red LED Spot Diameter: 11 mm or less Detectable Objects: Transparent and opaque Hysteresis: 7% (at 80 mm) to 12% (at 200 mm) of the detecting distance Sensitivity Adjustment: 1-turn trimmer Response Time: 2 ms max. Operation Mode: LIGHT-ON / DARK-ON (switch-selectable) Indicator Lamp: Red LED (output indicator) Control Output: NPN open-collector, 100 mA max. (24 VDC max.), Residual voltage: 1 V max. Protection Circuit: Reverse polarity protection, Surge absorber Power Supply Voltage: 12 to 24 VDC ±10%, Ripple (P-P) 10% or less Current Consumption: 45 mA or less Enclosure Rating: IP67 Ambient Light Resistance: Incandescent lamp: 3,000 lux max.; Sunlight: 10,000 lux max. Ambient Temperature: -10 to +50 °C (14 to 122 °F), no freezing Relative Humidity: 35 to 85% RH (no condensation) Vibration Resistance: 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions Shock Resistance: 1,000 m/s², 6 times in each of the X, Y, and Z directions Case Material: Fiberglass reinforced plastic Weight: Approximately 75 g (including 2-meter cable) Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   0.90

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   274916 N.A
