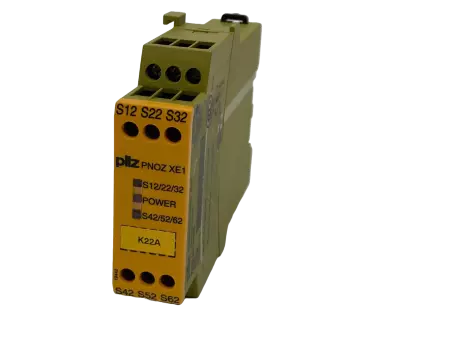

Pilz PNOZ-XE1 24VDC Safety Relay PN 774620 - IN GERMANY

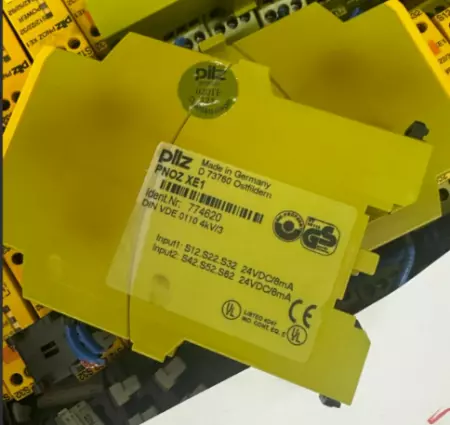

Compact safety relay module used for monitoring emergency stop buttons, safety gates, and other safety-related inputs. Part of the PNOZ X series, designed to provide reliable machine stop control and ensure compliance with global safety standards. Technical Specifications: Manufacturer: Pilz GmbH & Co. KG Model: PNOZ XE1 Part Number: 774620 Operating Voltage: 24 VDC Input Circuits: – Input 1: S12, S22, S32 – 24 VDC, 8 mA – Input 2: S42, S52, S62 – 24 VDC, 8 mA Output Contacts: (not shown on label, typical) 2 safety contacts (NO), 1 auxiliary contact (NC or NO depending on configuration) Safety Category: – EN ISO 13849-1: Cat. 4, PL e – EN 62061: SIL CL 3 – IEC 61508: SIL 3 Status Indicators: LED diagnostics for power, input/output state, and fault Mounting: DIN rail Housing Type: Compact modular, yellow safety housing Certifications: CE, UL, TUV, CCC Year of Manufacture: 2013 Country of Origin: Made in Germany Typical Applications: – Emergency stop circuit monitoring – Safety gate control – Two-hand control monitoring – Light curtain or safety mat interface – General machinery safety relay control systems Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   2.00

Depth:   12.00

Length:   12.00

Width:   12.00

SKU:   274917 N.A
