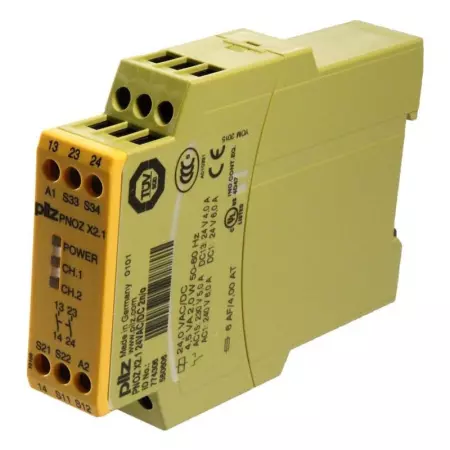

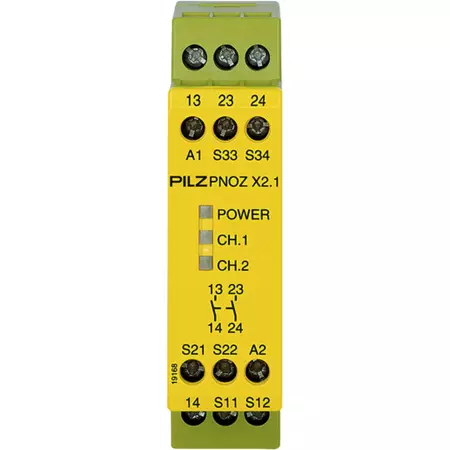

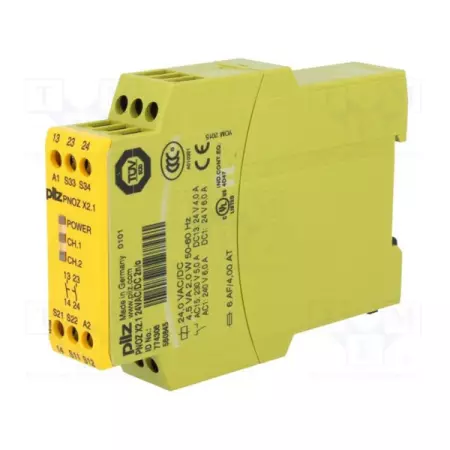

Pilz PNOZ-X2.1-24VAC/DC-2NO Safety Relay 6 amp, PN 774306 - IN GERMANY

Pilz PNOZ X2.1-24VAC/DC-2NO (PN 774306) is a compact safety relay used for monitoring safety functions such as emergency stop, safety gates, and light barriers. It operates with a supply voltage of 24 VAC/DC and provides two normally open (NO) safety contacts suitable for applications requiring basic safety performance. Supply Voltage: 24 VAC/DC Contacts: 2 NO safety contacts Switching Capacity (Resistive Load): 6 A at 250 VAC Minimum Switching Current: 10 mA Response Time: 15 ms Release Time: 15 ms Power Consumption: 1.5 W Connection Type: Screw terminals Mounting: DIN rail Width: 22.5 mm Operating Temperature: -10°C to +55°C Protection Class: IP20 (housing), IP40 (terminals) Standards: EN 60204-1, EN ISO 13849-1, EN 62061 Category: Cat. 3 according to EN ISO 13849-1 Performance Level: PL d SIL Level: SIL CL 2 according to EN 62061 Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   0.90

Depth:   12.00

Length:   12.00

Width:   12.00

SKU:   274918 N.A
