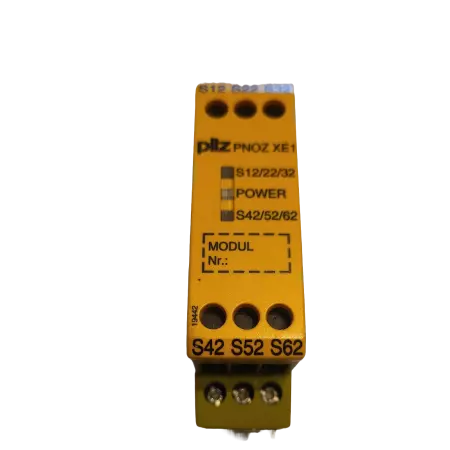

Pilz PNOZ-XE1 Safety Relay PN 774620 - IN GERMANY

Pilz PNOZ XE1 (PN 774620) is a safety relay module designed for reliable monitoring of E-STOP pushbuttons and safety gates. It offers enhanced electrical durability and features suitable for standard safety applications in industrial environments. Supply Voltage: 24 VDC Contacts: 2 NO safety outputs, 1 NC auxiliary output Switching Capacity (Resistive Load): 6 A at 250 VAC Minimum Switching Current: 10 mA Response Time: 13 ms Release Time: 13 ms Power Consumption: approx. 2 W Connection Type: Screw terminals Mounting: DIN rail Width: 22.5 mm Operating Temperature: -10°C to +55°C Protection Class: IP20 (housing), IP40 (terminals) Standards: EN 60204-1, EN ISO 13849-1, EN 62061 Category: Cat. 3 according to EN ISO 13849-1 Performance Level: PL d SIL Level: SIL CL 2 according to EN 62061 Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   1.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   274920 N.A
