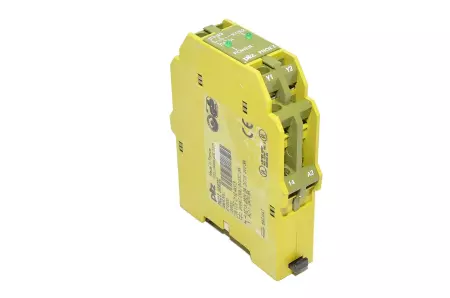

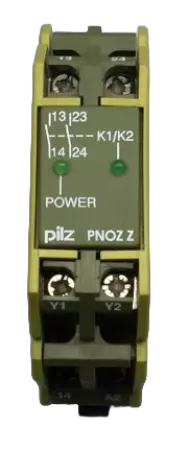

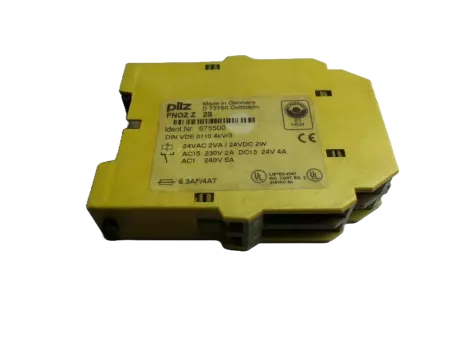

Pilz PNOZ-Z 24VAC/DC Safety Relay 250AC/24DC 5 amp, PN 675500 - IN GERMANY

Pilz PNOZ Z 24VAC/DC (PN 675500) is a basic safety relay designed for universal use in emergency stop circuits and safety gate monitoring. It offers dependable relay-based safety functions with a single-channel input configuration and compact housing. Supply Voltage: 24 VAC/DC Contacts: 2 NO safety contacts Switching Capacity (Resistive Load): 5 A at 250 VAC / 24 VDC Minimum Switching Current: 10 mA Response Time: 10 ms Release Time: 10 ms Power Consumption: approx. 1.5 W Connection Type: Screw terminals Mounting: DIN rail Width: 22.5 mm Operating Temperature: -10°C to +55°C Protection Class: IP20 (housing), IP40 (terminals) Standards: EN 60204-1, EN ISO 13849-1, EN 62061 Category: Cat. 1 according to EN ISO 13849-1 Performance Level: PL c SIL Level: SIL CL 1 according to EN 62061 Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   2.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   274921 N.A
