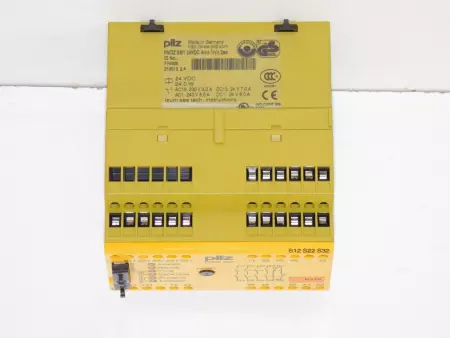

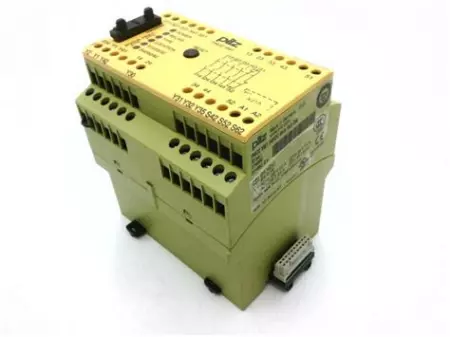

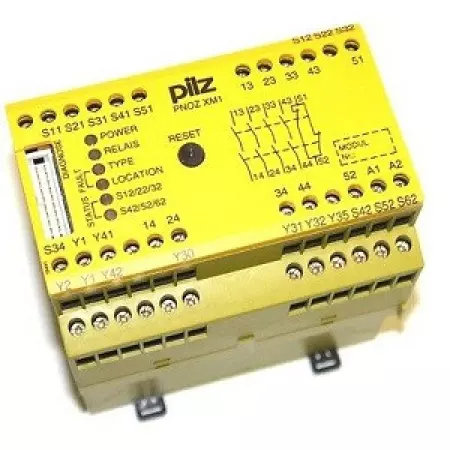

Pilz PNOZ-XM124VDC4NO1NC Safety Relay PN 774600 - IN GERMANY

Pilz PNOZ XM1 24VDC 4NO 1NC (PN 774600) is a safety relay designed for universal safety applications such as emergency stop, safety gates, and light barriers. It provides multiple contacts for flexible integration into control circuits, offering reliable switching performance with compact design. Supply Voltage: 24 VDC Contacts: 4 NO safety contacts, 1 NC auxiliary contact Switching Capacity (Resistive Load): 8 A at 240 VAC / 24 VDC Minimum Switching Current: 10 mA Response Time: 13 ms Release Time: 13 ms Power Consumption: approx. 24 W Connection Type: Screw terminals Mounting: DIN rail Width: 22.5 mm Operating Temperature: -10°C to +55°C Protection Class: IP20 (housing), IP40 (terminals) Standards: EN 60204-1, EN ISO 13849-1, EN 62061 Category: Cat. 4 according to EN ISO 13849-1 Performance Level: PL e SIL Level: SIL CL 3 according to EN 62061 Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   4.00

Depth:   12.00

Length:   12.00

Width:   12.00

SKU:   274922 N.A
