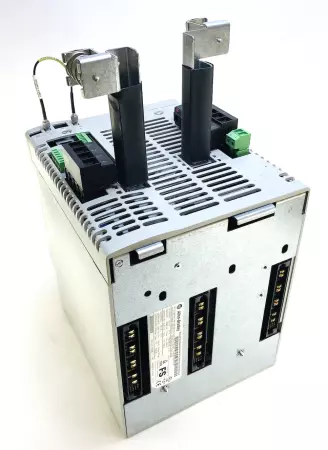

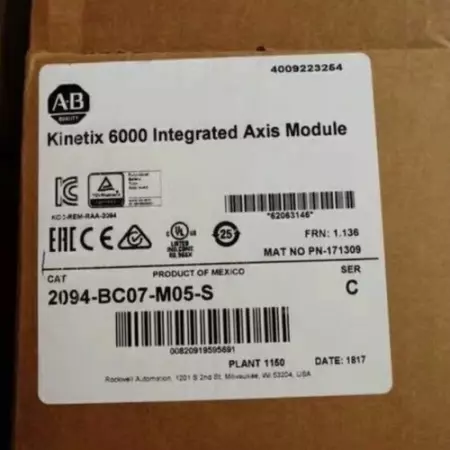

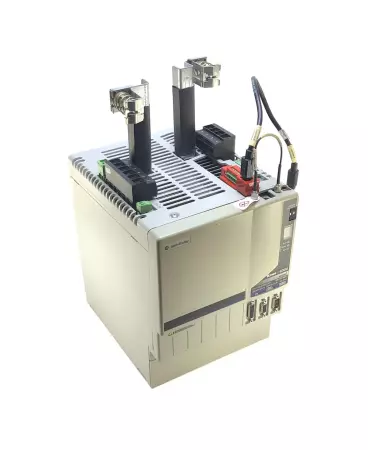

Allen-Bradley 2094-BC07-M05-S SER.B Kinetix 6000 Servo Drive 45kW -IN GERMANY

The Allen-Bradley 2094-BC07-M05-S is a Kinetix 6000 Integrated Axis Module (IAM) designed for high-performance multi-axis motion control in industrial automation systems. This module combines a converter and inverter into a single unit, providing efficient power conversion and motor control capabilities. Technical Specifications: Input Voltage (AC): 360–480 V AC nominal, 3-phase (range: 324–528 V AC) Input Frequency: 47–63 Hz AC Input Current (Nominal): 71 A AC Input Current (Max Inrush): 62.2 A DC Bus Voltage (Common Bus Follower): 458–747 V DC DC Input Current (Common Bus Follower): 67.7 A Continuous Power Output to Bus: 45 kW Peak Power Output to Bus: 135 kW Continuous Output Current (RMS): 67.7 A Peak Output Current (RMS): 203.2 A Internal Shunt Resistor: 28.75 Ω Internal Shunt Power (Continuous): 200 W Internal Shunt Power (Peak): 22.5 kW Efficiency: ≥97% Operating Temperature: 0°C to 50°C Storage Temperature: -40°C to 70°C Relative Humidity: 5% to 95% non-condensing Dimensions (H x W x D): 375 mm x 196 mm x 272 mm Weight: 10.1 kg (22.3 lbs) Safety Features: Safe Torque-Off (STO), compliant with ISO 13849-1 PLe and IEC 61508 SIL 3 Certifications: CE, UL, cUL, TUV

Condition: Used

Weight:   24.00

Depth:   6.00

Length:   12.00

Width:   15.00

SKU:   274923 N.A
