Allen-Bradley 1398-DDM-009 SER.A Ultra 100 Servo Drive 1kW/1.5HP - IN GERMANY

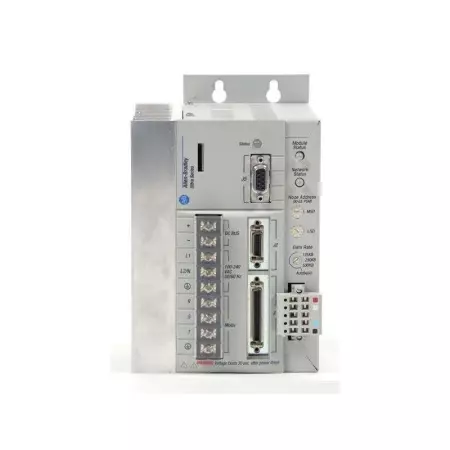

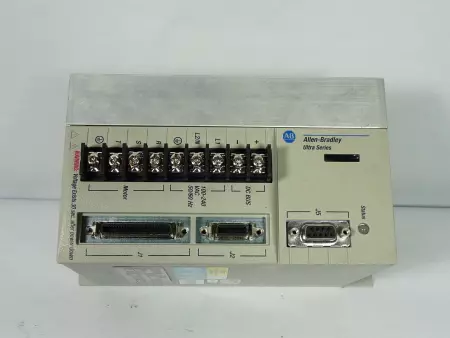

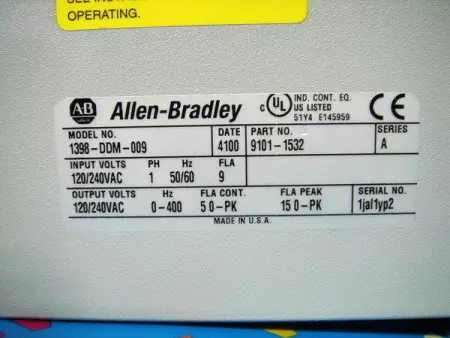

Allen-Bradley 1398-DDM-009 is a digital servo drive from the Ultra 100 series, designed for controlling brushless servo motors in motion control systems. It provides smooth, high-performance motion with closed-loop feedback. Technical Specifications (from label and standard data): Model Number: 1398-DDM-009 Series: A Input Voltage: 120/240 VAC, 1-phase Input Frequency: 50/60 Hz Full Load Amps (FLA): 9 A Output Voltage: 0–400 Hz, 120/240 VAC Continuous Output Current: 5 A Peak Output Current: 15 A Power Output: Approx. 1 kW / 1.5 HP Serial Number: 1JAL8SN5 Certifications: UL, CE Country of Manufacture: USA Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   2.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   274925 N.A
