Allen-Bradley 2094-BM01-M SER.A Kinetix 6200 Control Module 3.9kW - IN GERMANY

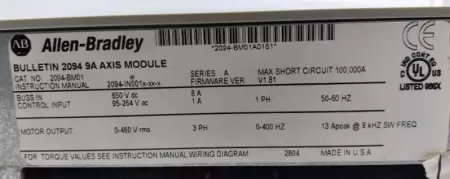

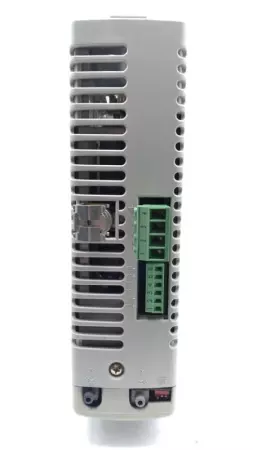

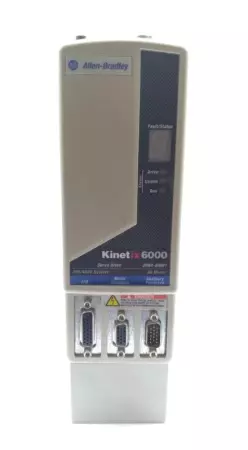

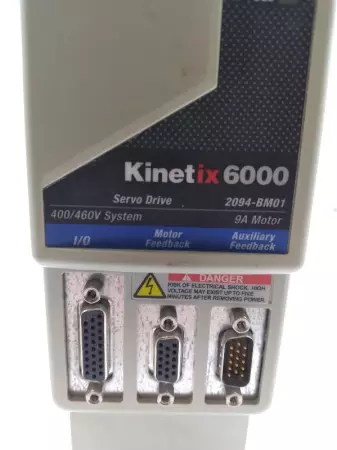

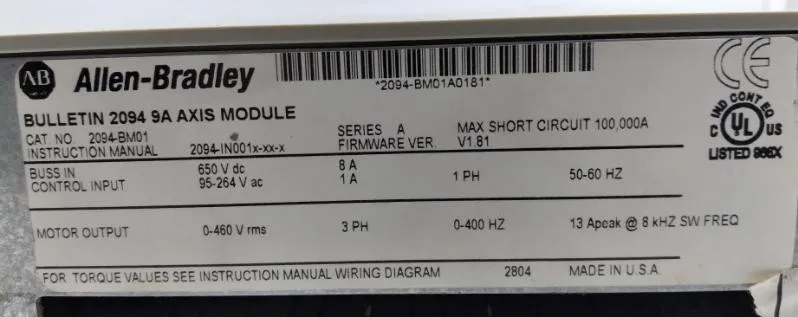

The 2094-BM01-M is a Kinetix 6200 integrated axis module that functions as a servo drive for controlling rotary or linear servo motors. It supports integrated safety features and operates with high-speed, precise motion capabilities. Technical Specifications: Cat No.: 2094-BM01-M Series: A Firmware Version: V1.81 Bus Voltage: 650 VDC Bus Current: 8 A Control Input Voltage: 95–264 VAC Control Input Current: 1 A Phase (Control Input): 1-phase Frequency (Control Input): 50–60 Hz Motor Output Voltage: 0–460 V RMS Motor Output Phase: 3-phase Motor Output Frequency: 0–400 Hz Output Current: 13 A peak @ 8 kHz switching frequency Max Short Circuit Rating: 100,000 A Made in: U.S.A. Wiring Reference: Instruction manual 2094-IN001x-xx-x, wiring diagram 2804 Power Handling: Approximate Power: 3.9 kW continuous output power class (based on current and voltage ratings) Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   4.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   274926 N.A
