In stock 2 available

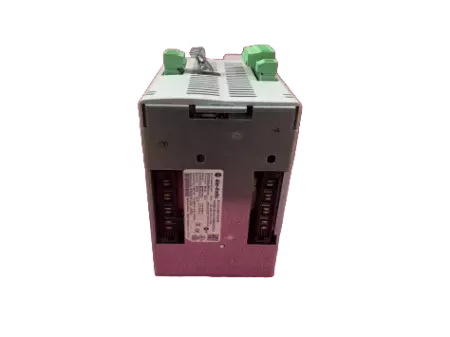

The 2094-BC02-M02-M is a 15 kW integrated axis power module that combines inverter and converter functions for servo motor control within Kinetix 6200 multi-axis systems. It supplies regulated power and control to multiple servo drives, suitable for demanding motion applications. Technical Specifications : Catalog Number: 2094-BC02-M02-M Series: A Product: Kinetix 6200 Integrated Axis Power Module Rated Power Output: 15 kW Rated Current Output: 14.6 A continuous / 36.4 A peak DC Link Input: 650 VDC @ 22.6 A Main Input Voltage: 360–480 VAC, 3-phase, 50–60 Hz Control Input Voltage: 95–264 VAC, 1-phase, 50–60 Hz, 6 A Bus Output: 650 VDC @ 22.6 A Motor Output Voltage: 0–480 Vrms, 3-phase, 0–590 Hz Control Output Voltage: 95–264 VAC, 1-phase, 50–60 Hz Max Short Circuit Current Rating: 200,000 A Enclosure Rating: UL, CE, KC certified Country of Manufacture: Mexico Instructions Manual Ref: 2094-IN012x-xx-x Factory Code: FAC. 4K This unit is typically used in modular multi-axis systems and is designed to work with Kinetix 6200 axis modules for distributed motion solutions. Let me know if you want a wiring guide, compatible axis module info, or dimensions. Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 5.00
Depth: 8.00
Length: 8.00
Width: 8.00
SKU: 274927 N.A
