In stock 3 available

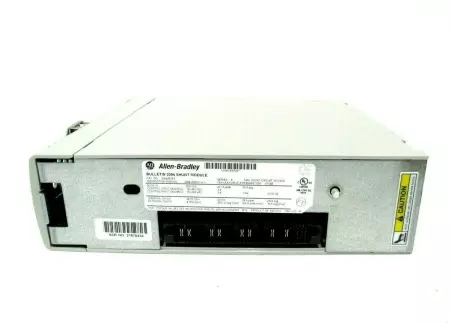

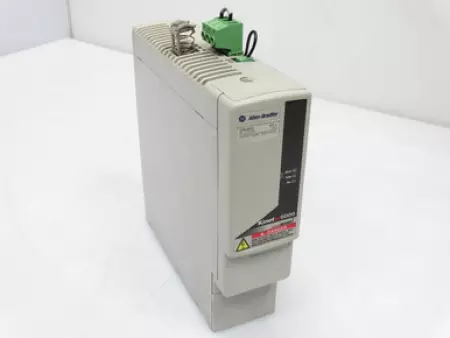

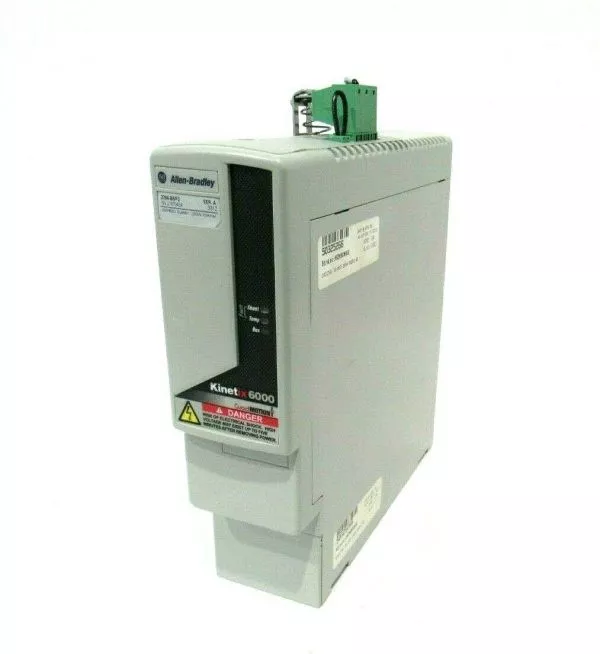

The 2094-BSP2 is a shunt module designed for absorbing excess regenerative energy from servo axis modules in Kinetix systems. It enhances the system’s ability to manage braking energy and ensures voltage stability on the DC bus. Technical Specifications (from label): Catalog Number: 2094-BSP2 Series: A Control Input Voltage (200/230V Systems): 120–425 VDC @ 3 A Control Input Voltage (400/460V Systems): 100–264 VAC @ 3 A Input Phase: 1-phase Input Frequency: 50–60 Hz Max Short Circuit Rating: 100,000 A Internal Shunt Resistor: 28.75 Ohm Internal Shunt Power Dissipation: 200 W Internal Shunt Current: 28 A peak / 2.6 A avg External Shunt Resistance: 4 Ohm minimum External Shunt Power Capacity: 3600 W average External Shunt Current: 201 A peak / 30 A avg Location Code: FAC LOC 4K Country of Manufacture: Mexico Instruction Manual: 2094-IN001x-xx-x This shunt module is used to safely dissipate regenerative energy in high-performance servo systems, preventing overvoltage faults. Let me know if you’d like wiring examples or compatible modules. Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 4.00
Depth: 8.00
Length: 8.00
Width: 8.00
SKU: 274928 N.A
