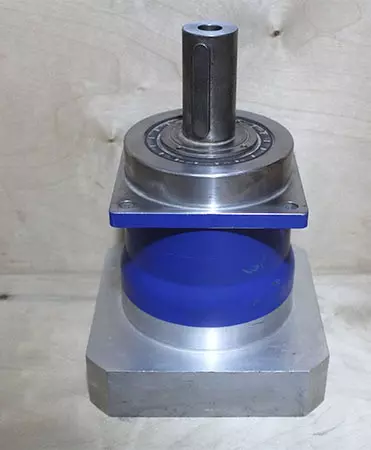

Alpha 140S-MC1-4-1K1-2K Speed Reducer, Ratio 4:1 - IN GERMANY

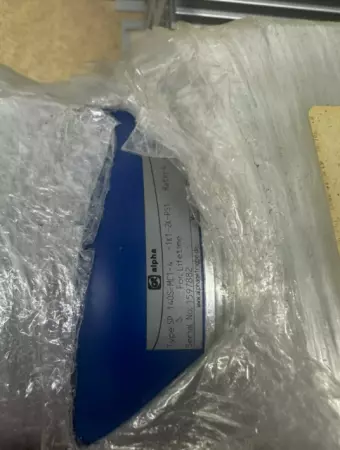

High-precision planetary gearbox designed for dynamic servo applications, offering low backlash, high torsional rigidity, and lifetime lubrication for maintenance-free operation in demanding automation environments. Technical Specifications: Manufacturer: Wittenstein alpha GmbH Model: SP 140S-MC1-4-1K1-2K-PS1 Gearbox Type: Planetary precision reducer Frame Size: 140 mm Gear Ratio: i = 4:1 Backlash: ≤3 arcmin (typical for SP+ series) Lubrication: For lifetime (maintenance-free) Mounting Type: Inline with keyway and clamping ring output Material Number: 39420226 Serial Number: 3184480 Date Code (DMF): 4/14 Enclosure: High-strength aluminum housing Protection Class: IP65 (typical for this type) Input Speed (max): Up to 6000 rpm Output Torque (nominal): Approx. 350–550 Nm (verify per detailed spec sheet) Torsional Rigidity: High (optimized for servo accuracy) Applications: Robotics, machine tools, packaging, printing, and automation systems Country of Origin: Made in Germany Manufacturer Address: Walter-Wittenstein-Str. 1, 97999 Igersheim, Germany Please review pictures carefully and let us know if you have any questions!

Condition: New

Weight:   28.00

Depth:   12.00

Length:   12.00

Width:   12.00

SKU:   274934 N.A
