In stock 2 available

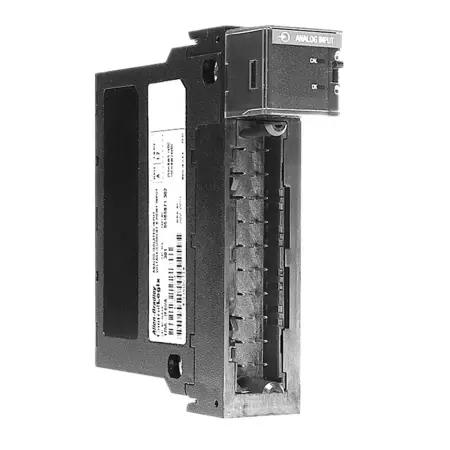

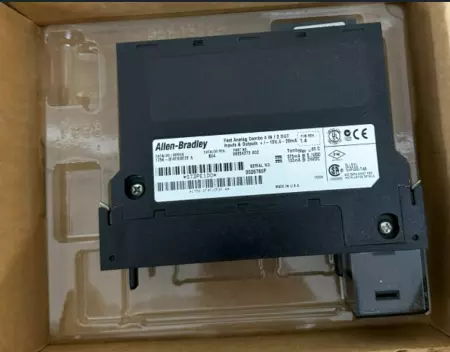

CompactLogix/ControlLogix high-speed analog input module designed for flexible signal acquisition and precise data handling in industrial automation systems. Supports both voltage and current inputs with advanced diagnostics and configurable resolution. Technical Specifications: Manufacturer: Allen-Bradley (Rockwell Automation) Catalog Number: 1756-IF4FXOF2F Module Type: Analog input/output module Channels: 6 total – 4 Analog Inputs – 2 Analog Outputs Input Signal Types: – Voltage: ±10V, 0–10V, 0–5V – Current: 0–20 mA, 4–20 mA Output Signal Types (2 Channels): – Voltage: ±10V – Current: 0–20 mA, 4–20 mA Resolution: 16-bit Input Accuracy: ±0.1% of full scale (typical) Update Rate: Programmable, supports fast update for control loops Isolation: Channel-to-channel and channel-to-backplane isolation Diagnostics: – Open circuit detection – Over-range/under-range monitoring – Broken wire detection (current mode) Backplane Current Draw: – 5.1V DC at 180 mA – 24V DC at 135 mA Mounting: ControlLogix chassis Operating Temperature: 0°C to 60°C Enclosure Rating: IP20 (requires enclosure) Certifications: UL, CE, CSA, ATEX (zone dependent) Applications: Precision analog sensing and control in PLC-based systems, including process control, motion, and energy management systems Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 8.00
Depth: 8.00
Length: 8.00
Width: 8.00
SKU: 274935 N.A
