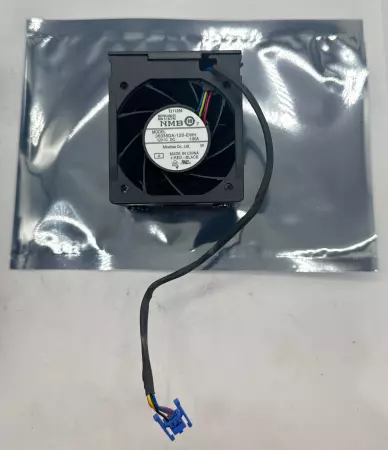

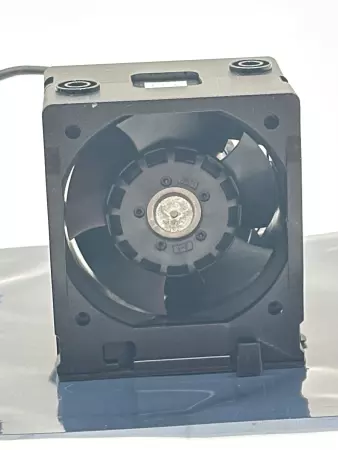

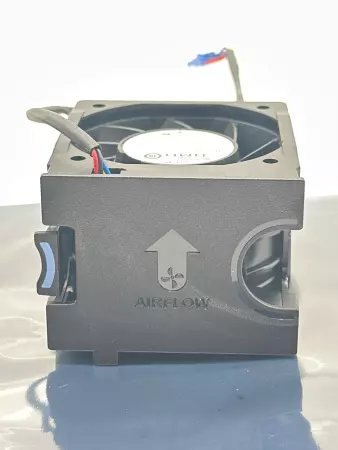

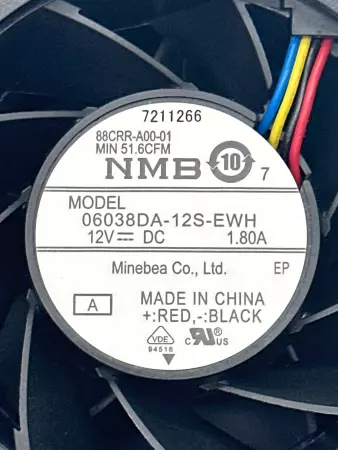

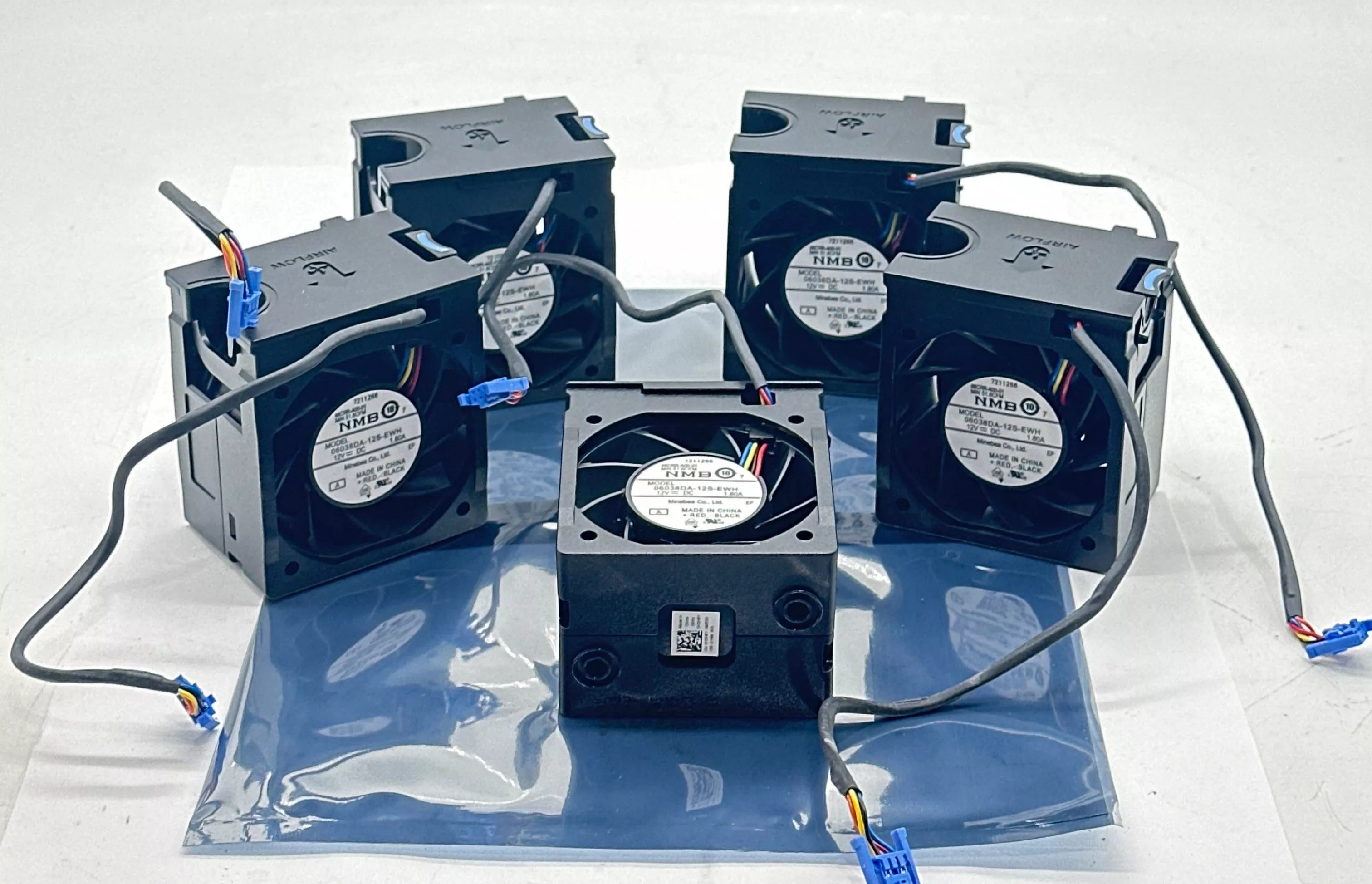

NMB 06038DA-12S-EWH 4-Wire Inverter Cooling Fan Lot of 5

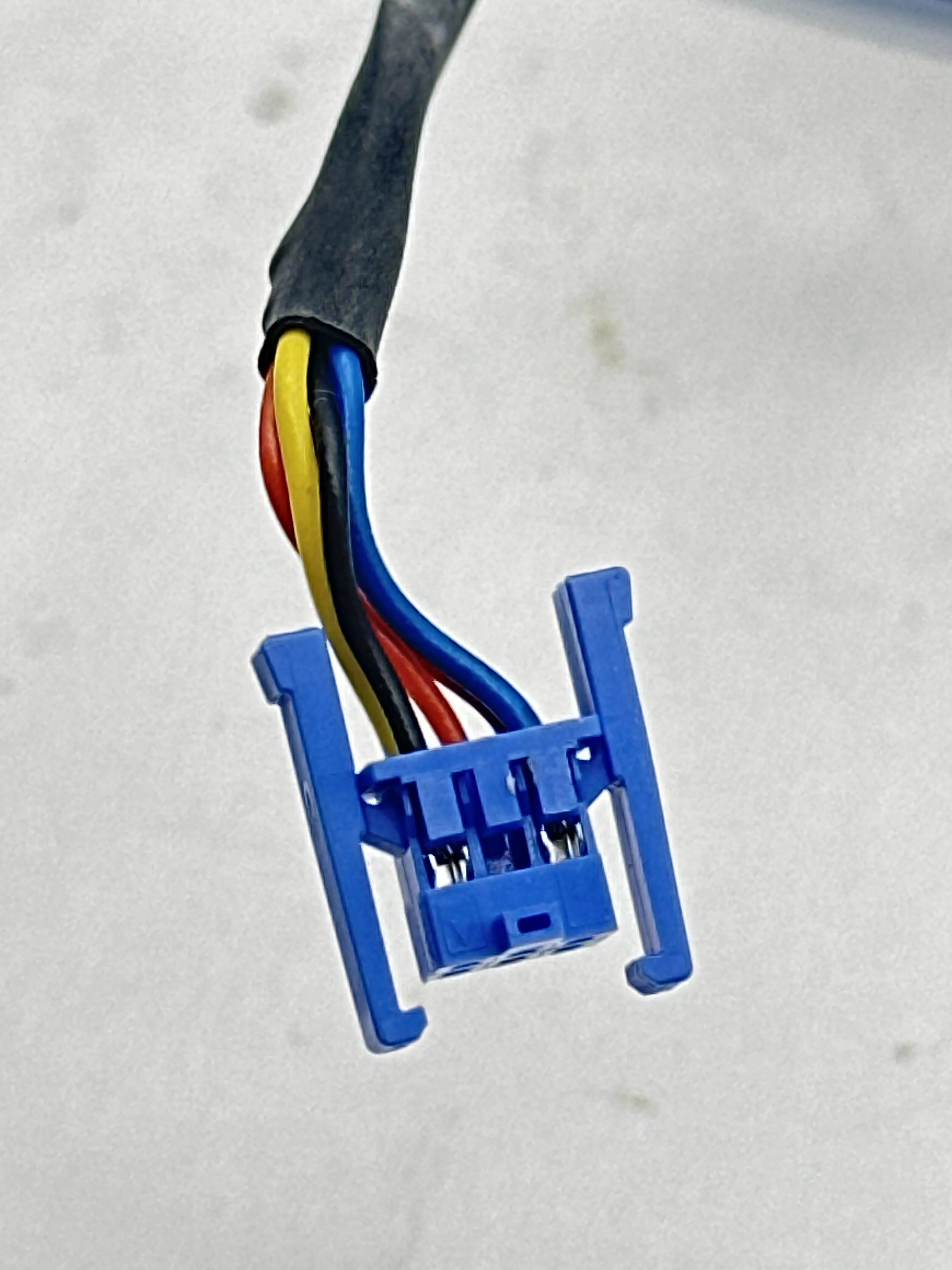

NMB 06038DA-12S-EWH is a compact 4-wire axial cooling fan designed for high-reliability cooling in inverters, power supplies, and industrial control systems. Part Number: 06038DA-12S-EWH Manufacturer: NMB Technologies (MinebeaMitsumi) Fan Type: Axial cooling fan Dimensions: 60 x 60 x 38 mm Voltage Rating: 12V DC Current Rating: 1.8 A (typical) Power Consumption: ~2.2 W Bearing Type: Ball bearing Speed Control: 4-wire PWM control (tachometer and speed control input) Airflow: ~27.5 CFM (approximate, based on similar models) Noise Level: ~36 dBA (typical) Connector Type: 4-pin PWM connector Frame Material: Plastic (UL94V-0 rated) Operating Temperature Range: -10°C to +70°C MTTF: 60,000 hours at 40°C Application: Inverter and power electronics cooling, industrial automation, embedded systems

Condition: New

Weight:   3.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   274947 4.S10.3.2
